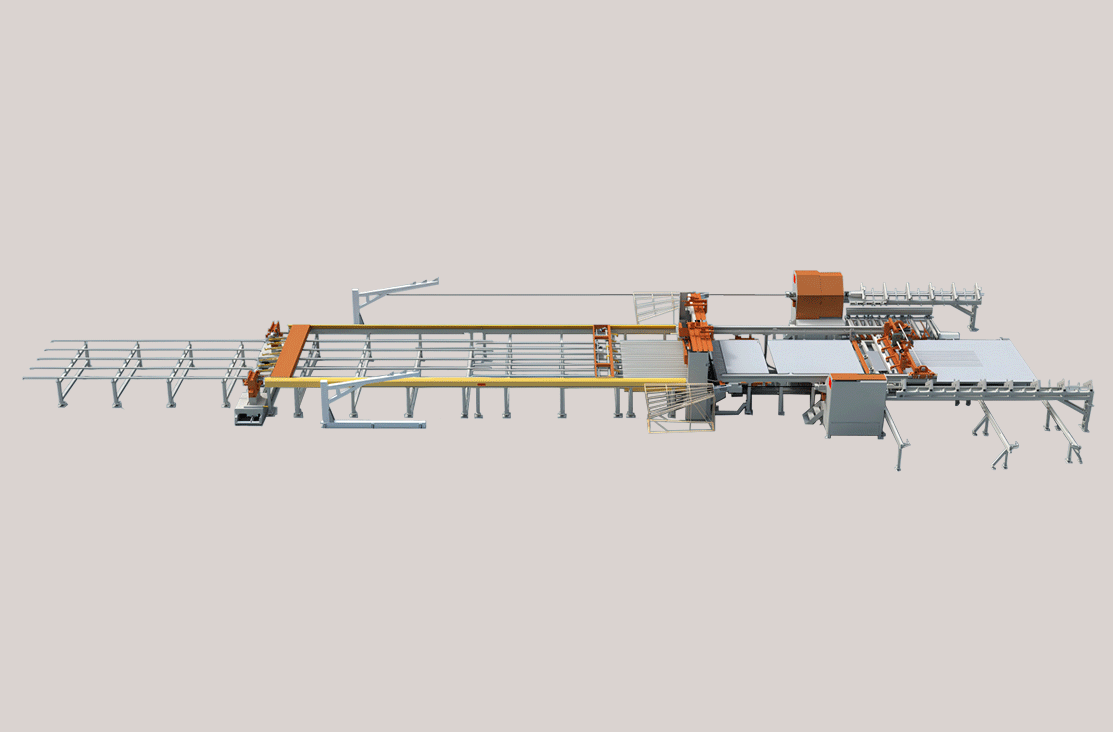

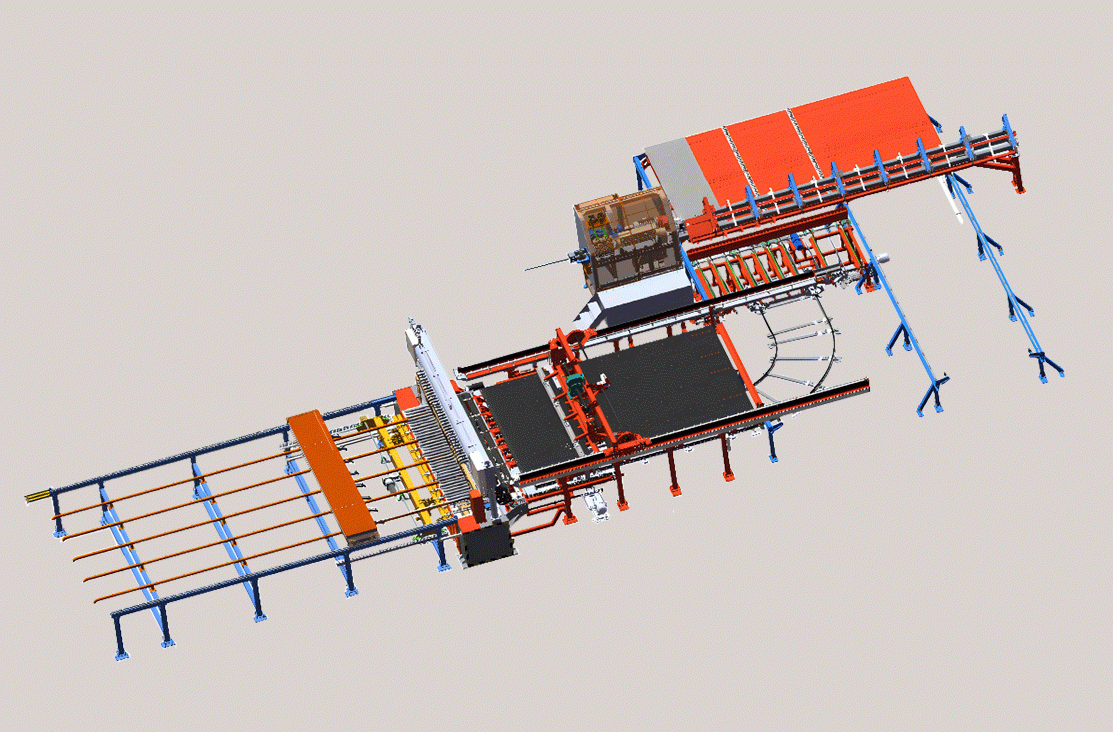

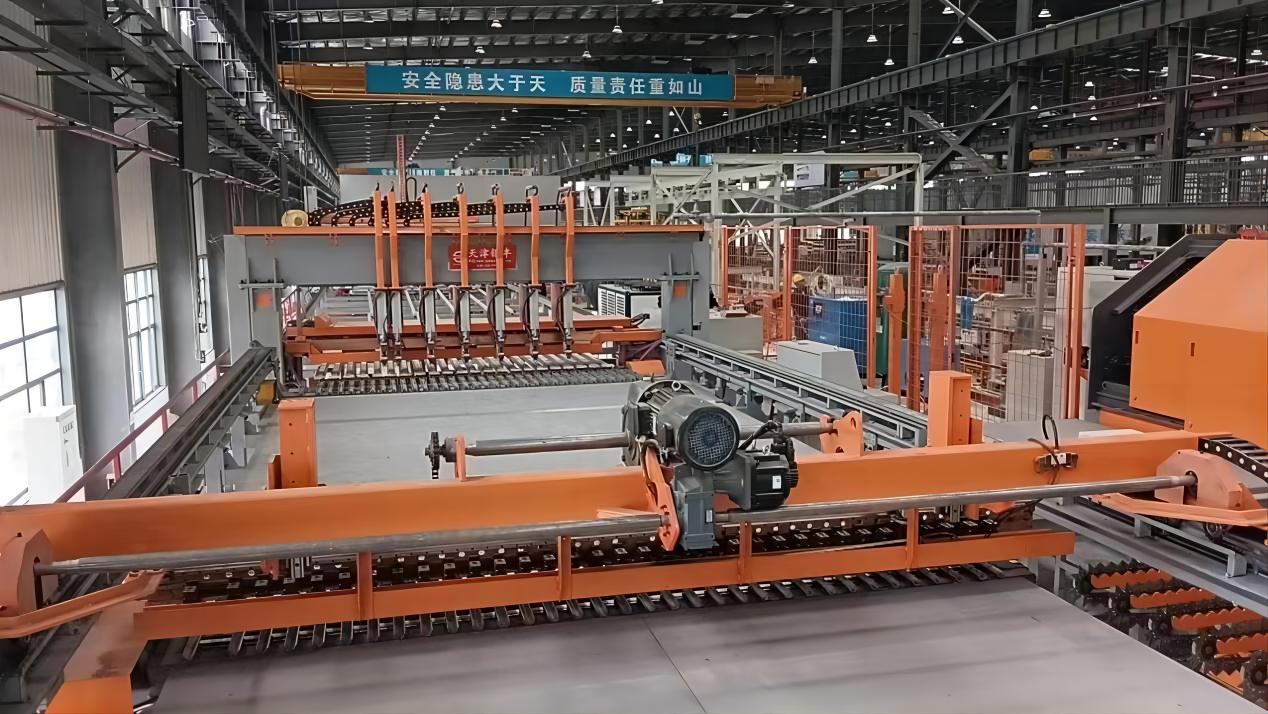

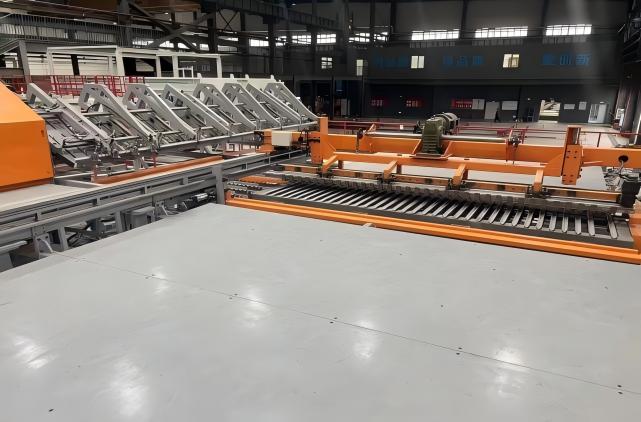

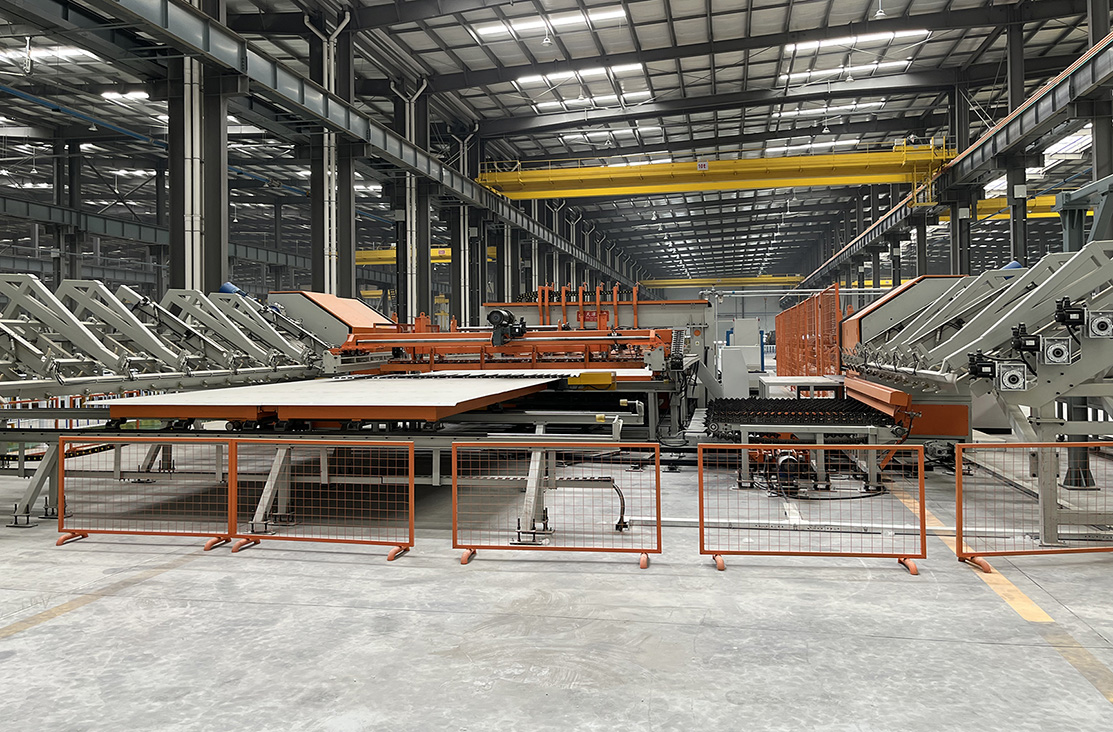

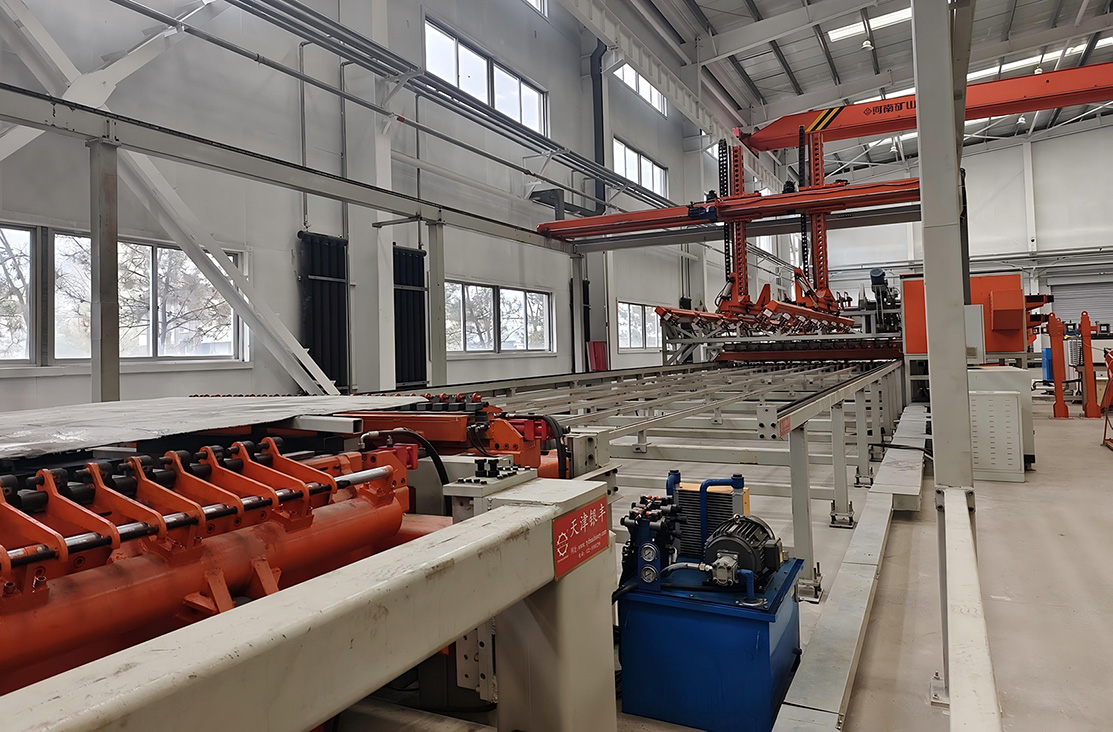

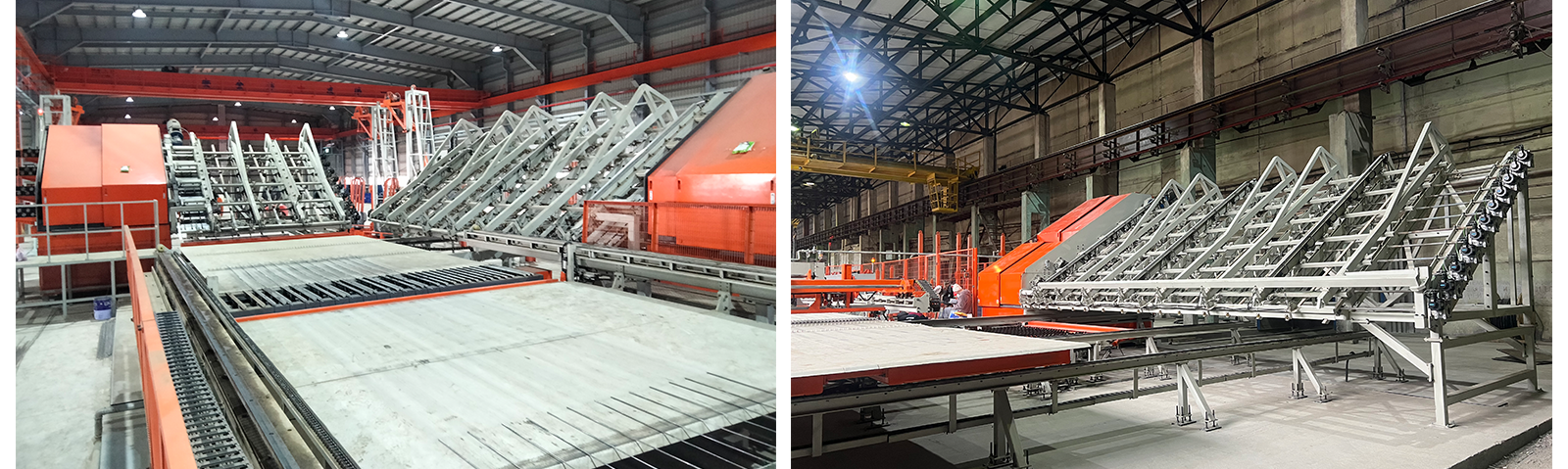

Smart Wire Mesh Production Line

Smart Wire Mesh Production Line
Smart Wire Mesh Production Line
Smart Wire Mesh Production Line
Smart Wire Mesh Production Line
Smart Wire Mesh Production Line
Smart Wire Mesh Production Line
Smart Wire Mesh Production Line
Smart Wire Mesh Production Line
Smart Wire Mesh Production Line
Smart Wire Mesh Production Line
Smart Wire Mesh Production Line
Smart Wire Mesh Production Line

PRODUCT PROFILE

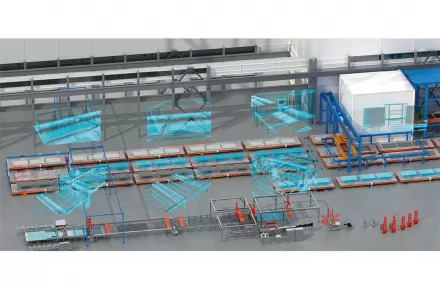

The traditional welding machine can only produce one specification each time, and takes 40 minutes for switching, which is too slow for mass production of various specification. Being free from the 50mm-multiple restriction of longitudinal spacing, the Smart Mesh Welding Production Line can freely adjust the spacing and automatically switch mesh specifications according to demand, produce more than 200 meshes in different shapes each shift, fully meeting the mass production needs of prefabrication. With the assistance of the digital twin cloud platform developed by TYF Machinery, it can easily import CAD drawings and automatically export BOM codes, saving a lot of manual efforts of code input, and realizing full-automatic production. After the adoption of this equipment, more than 40 workers of rebar processing, handling and binding can be saved every day, and the equipment investment can be recovered in half a year.


Smart Wire Mesh Production Line

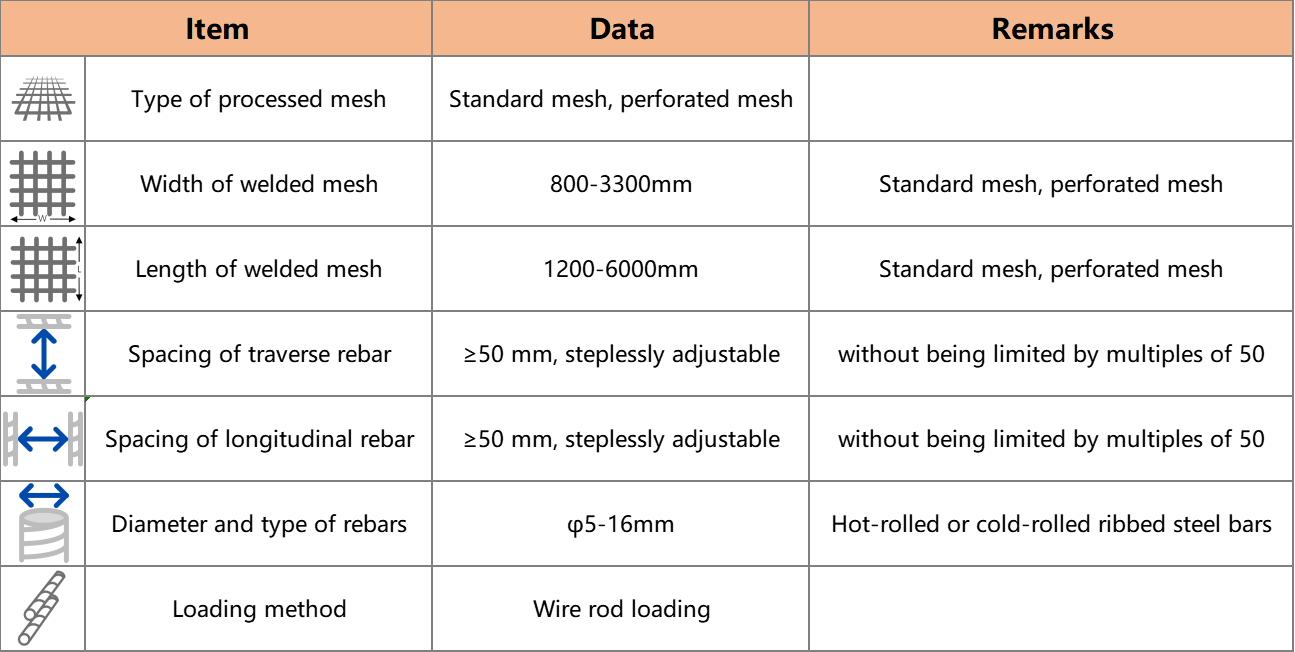

SPECIFICATION

Item

Data

Note

Mesh Type

Standard, windowed


Mesh Width

500-4000mm

Standard, windowed

Mesh Length

800-10000mm

Standard, windowed

Transverse spacing

≥50mm

Stepless adjustment

Longitudinal spacing

≥50mm

100-300mm Stepless Adjustment

Transverse bar diameter and type

Φ5-16mm

Hot rolled or cold rolled ribbed steel bar

Straightening Mechanism

2-6 unit selectable

Each unit can work for different diameter. High speed straightening.

Feeding Type

rod


Max. Welding Capacity

16+16mm

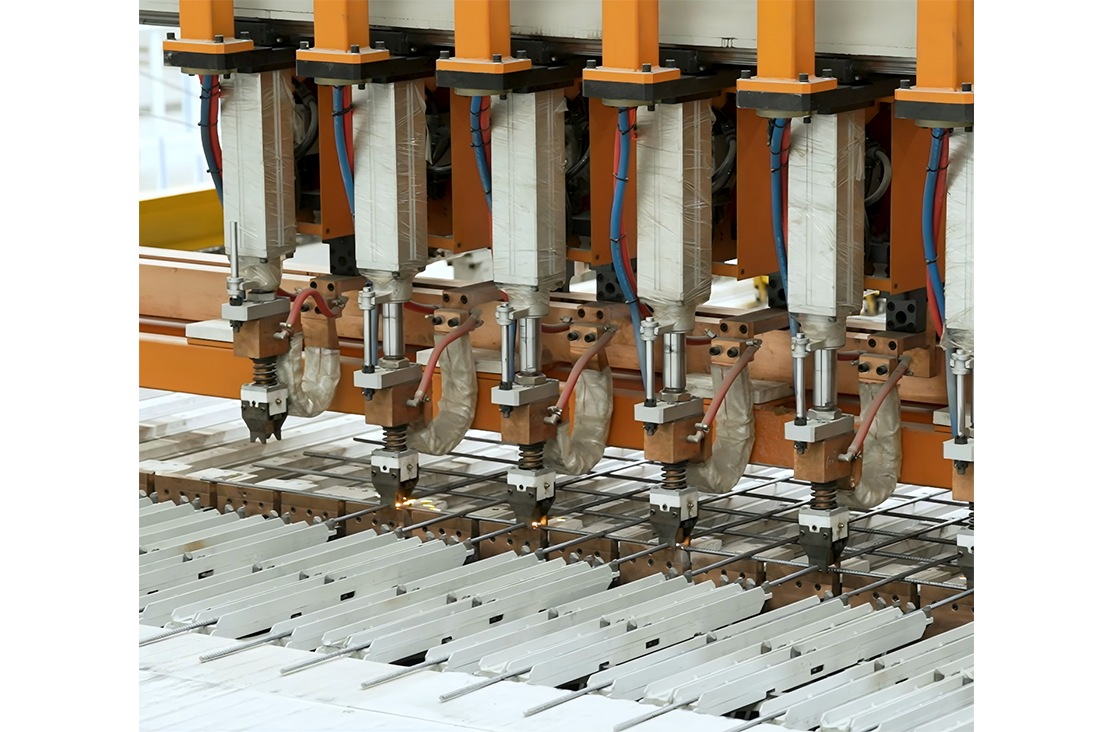

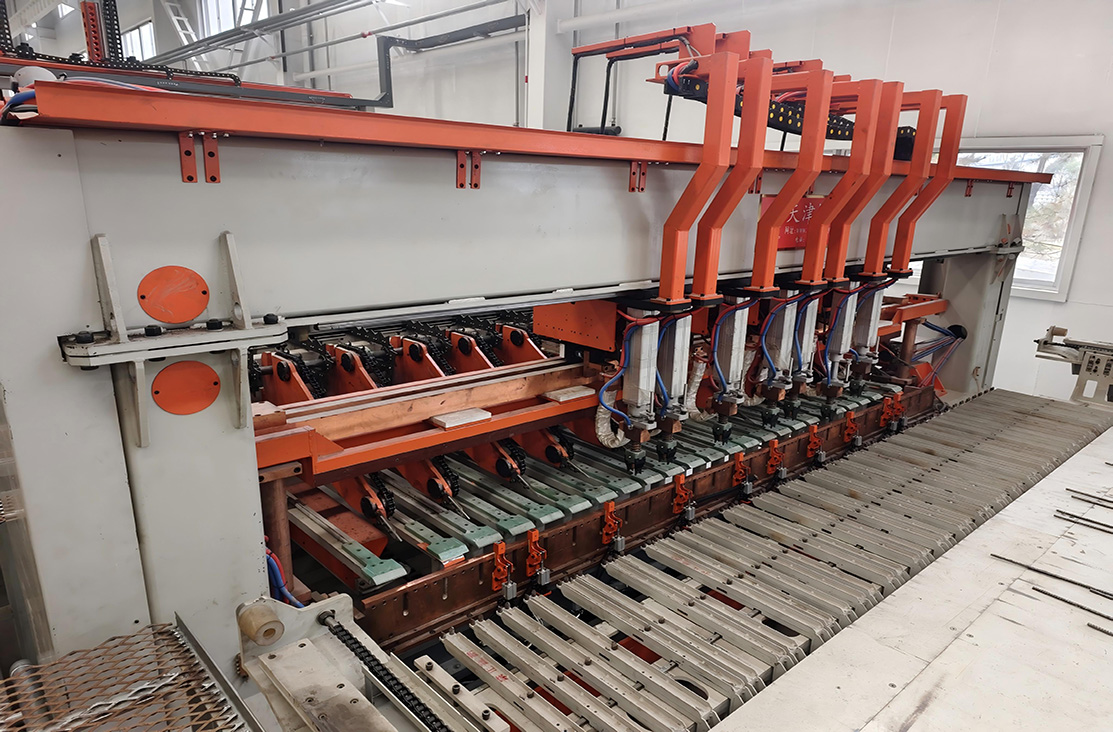

Num. of Welding Heads

7 movable welding heads

Selectable based on actual situation

Max. Working Speed

10-40 row/min


Welding Method

Med-frequency welding

Conserve 30% more power, no shock for the grid
