PRODUCT PROFILE

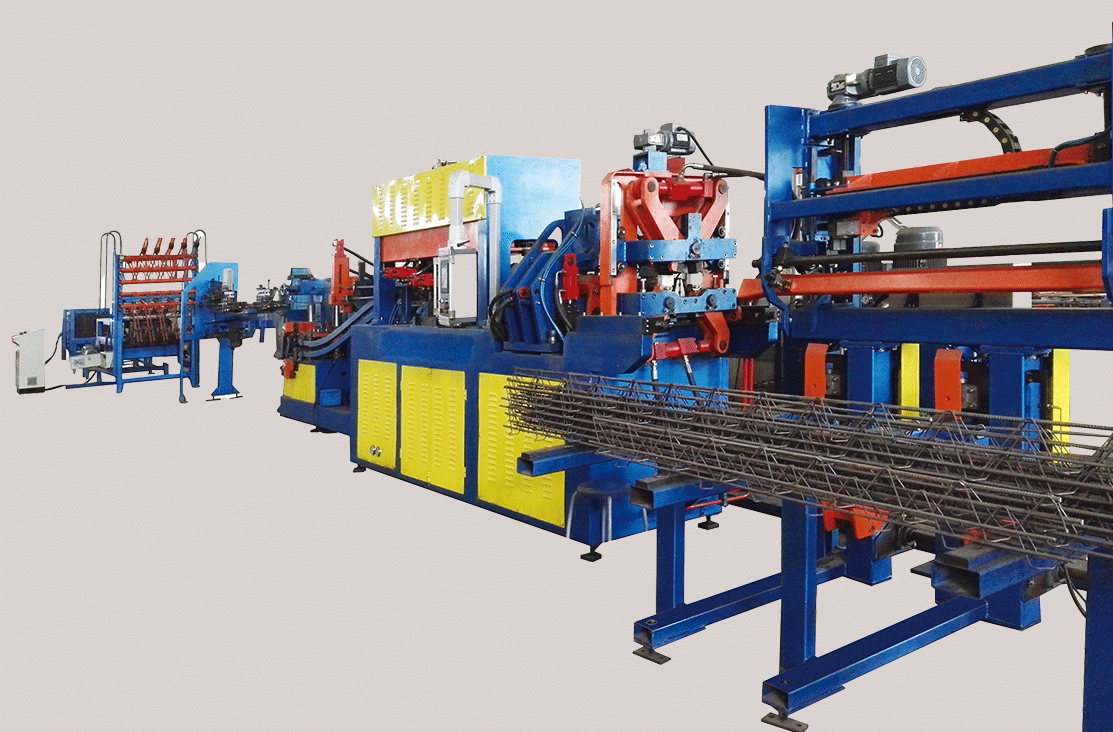

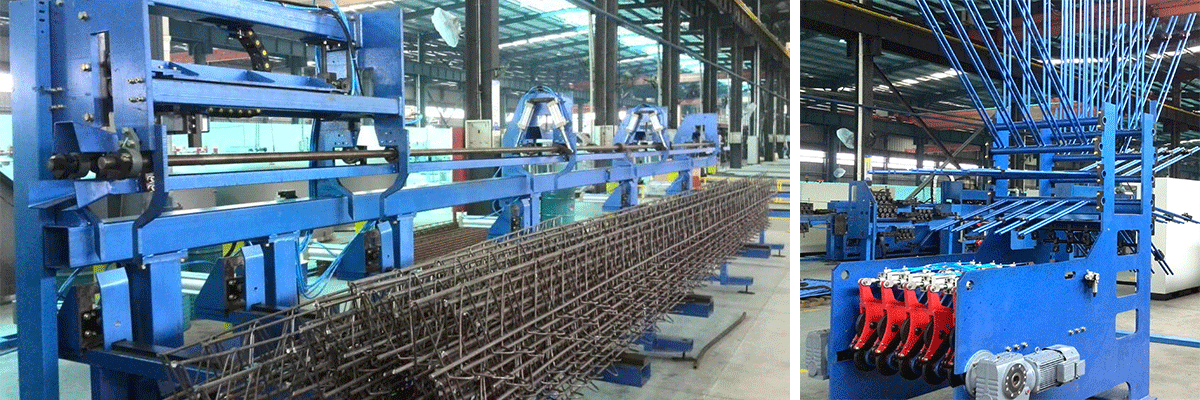

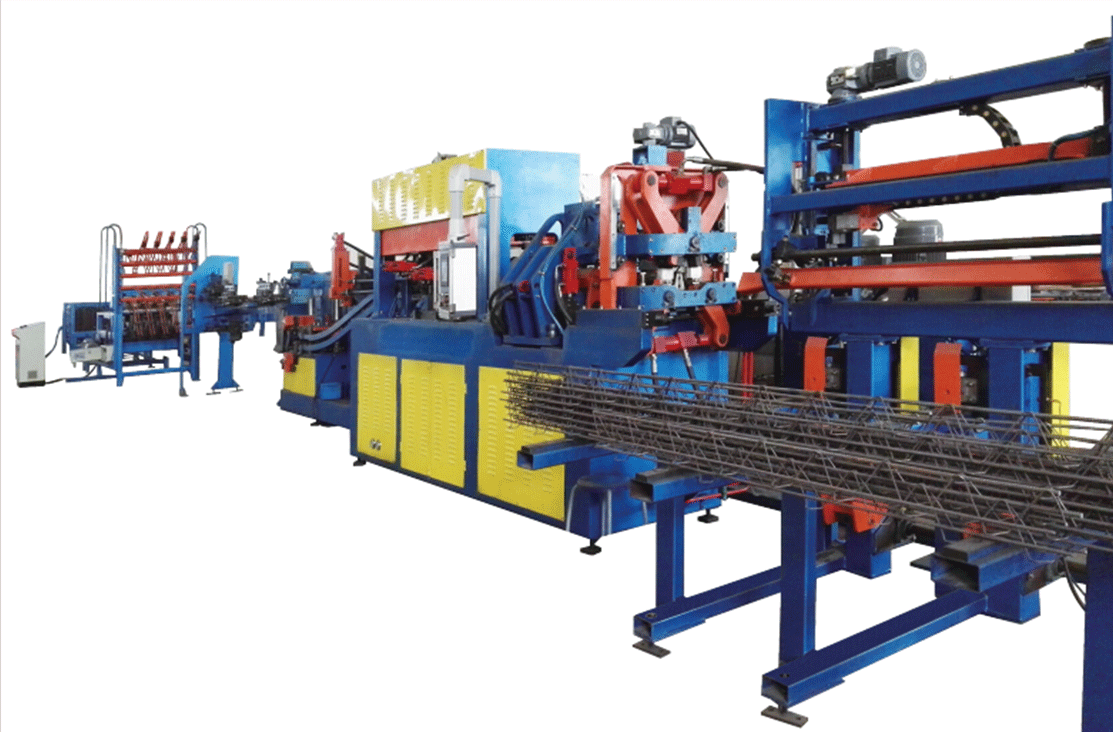

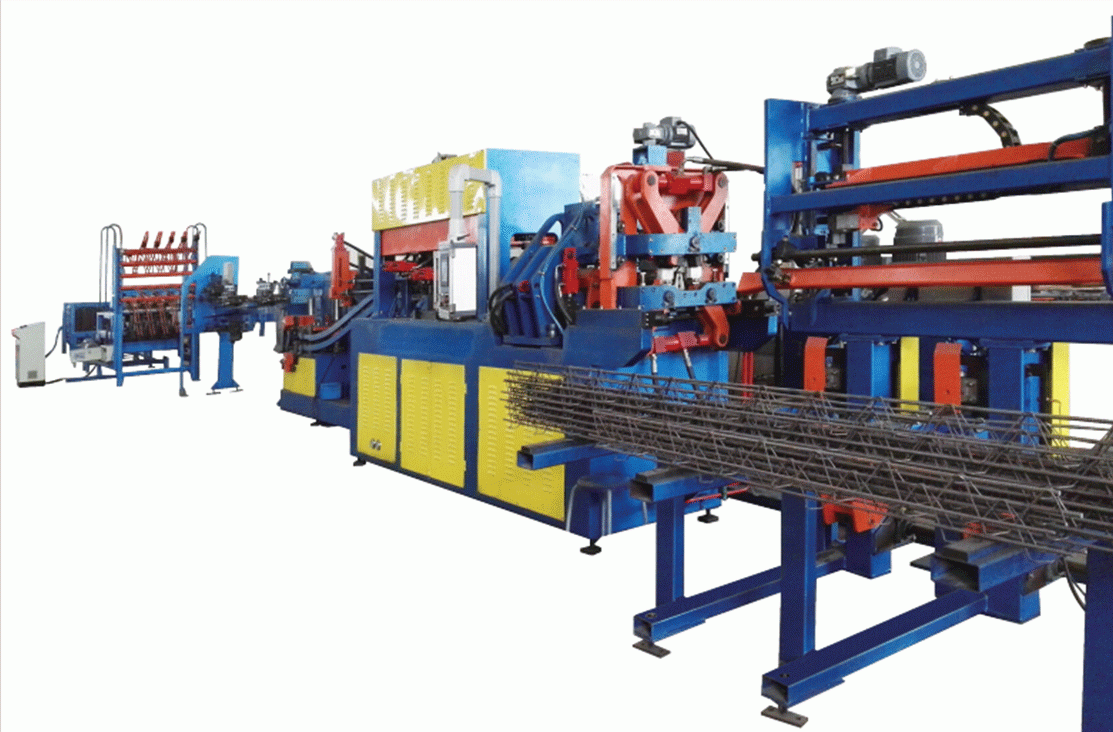

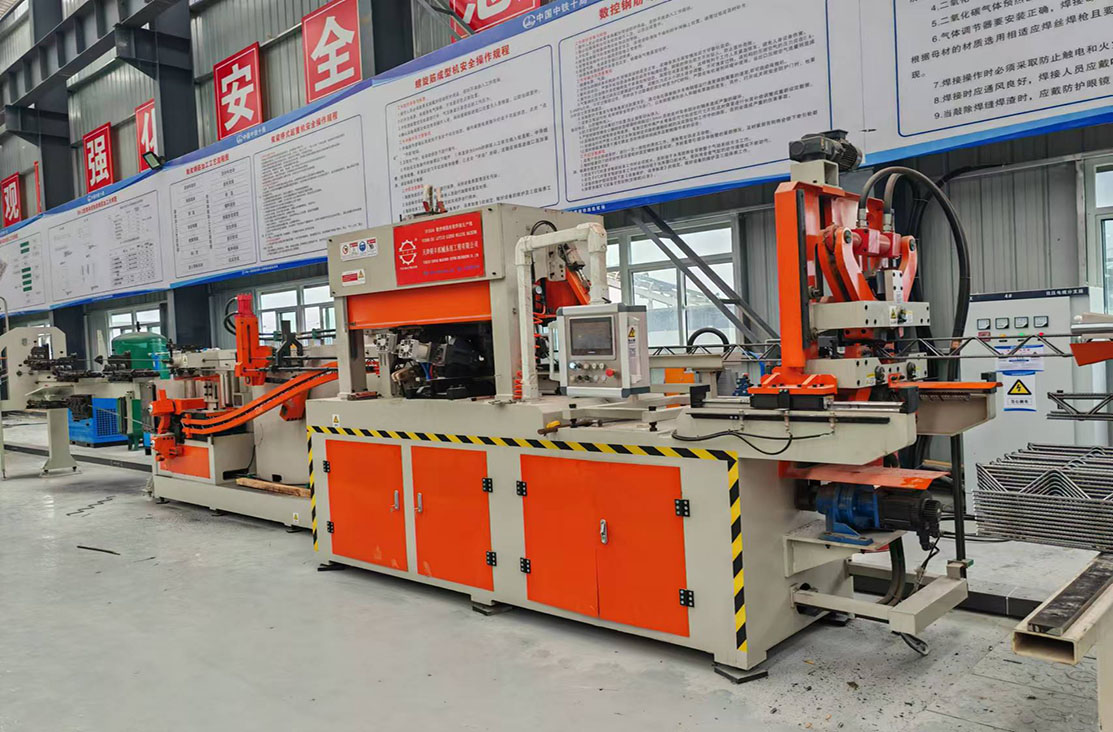

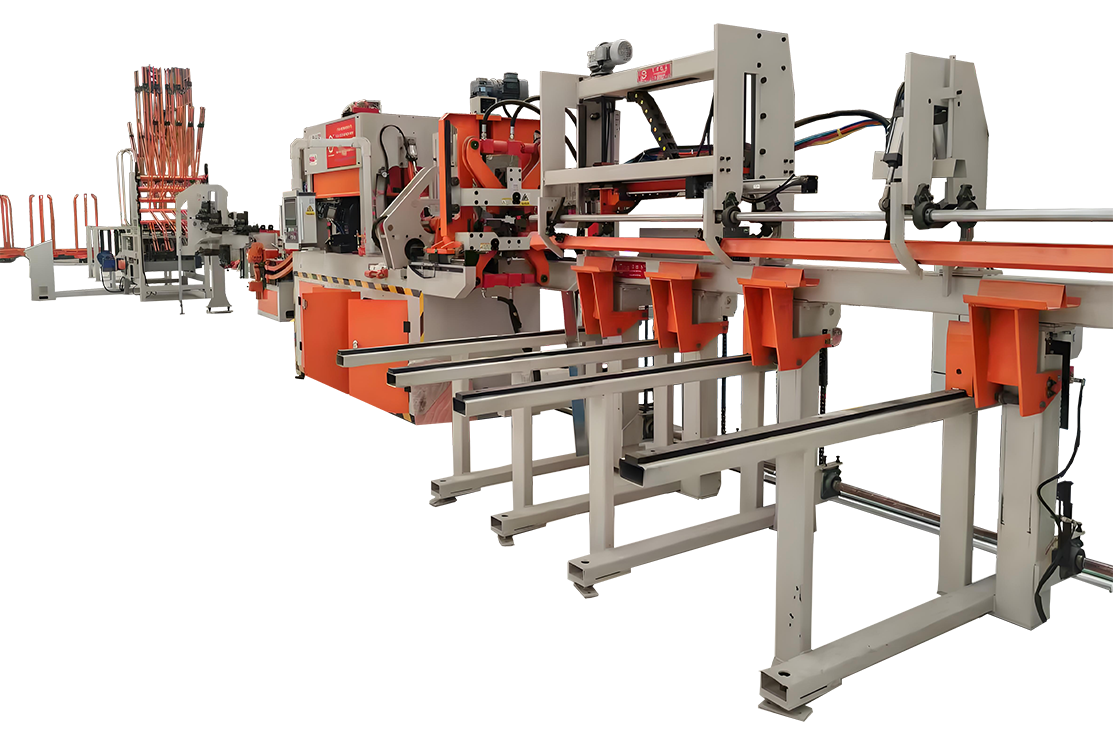

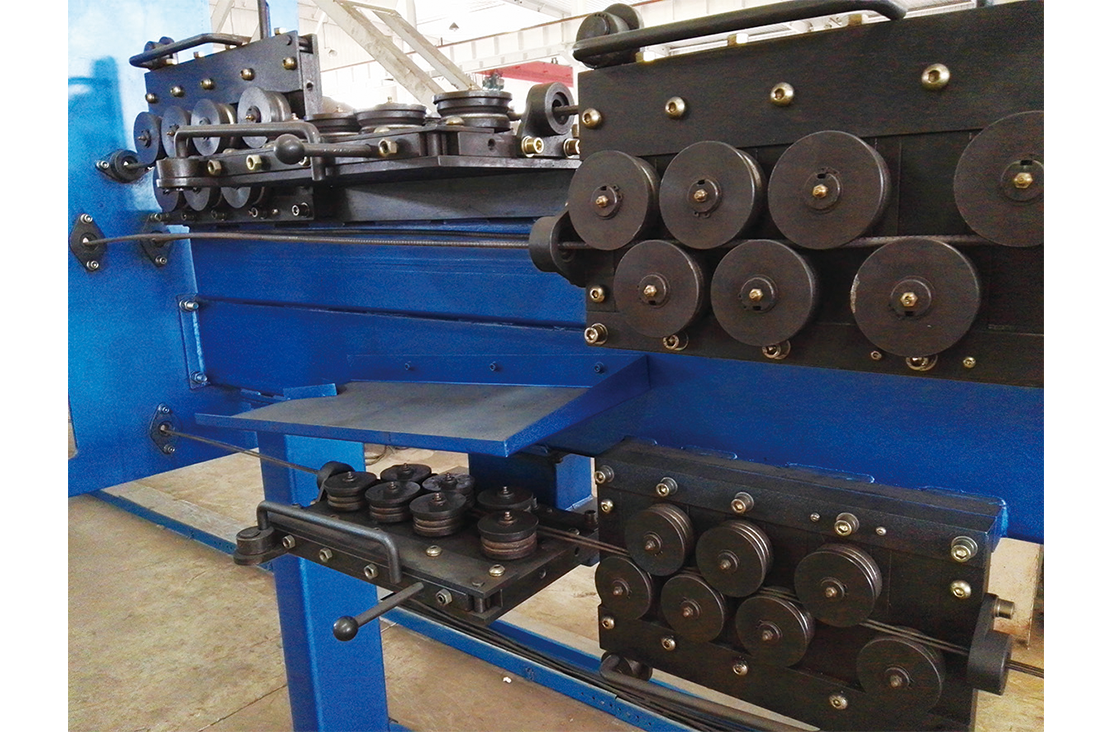

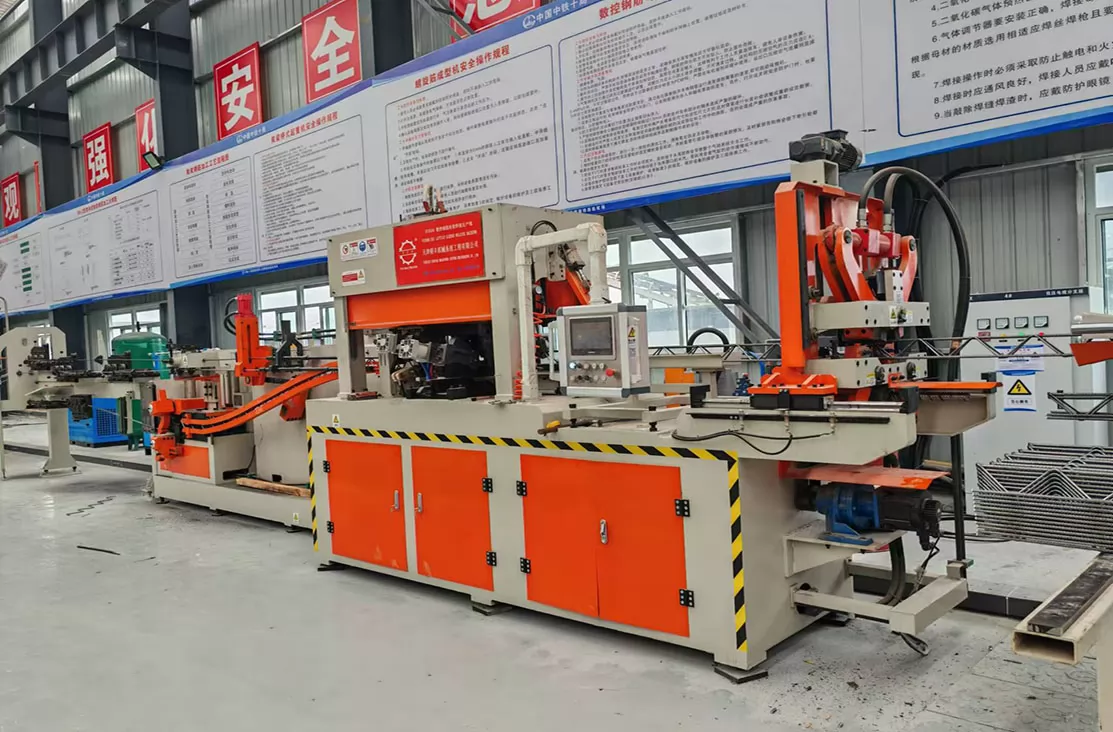

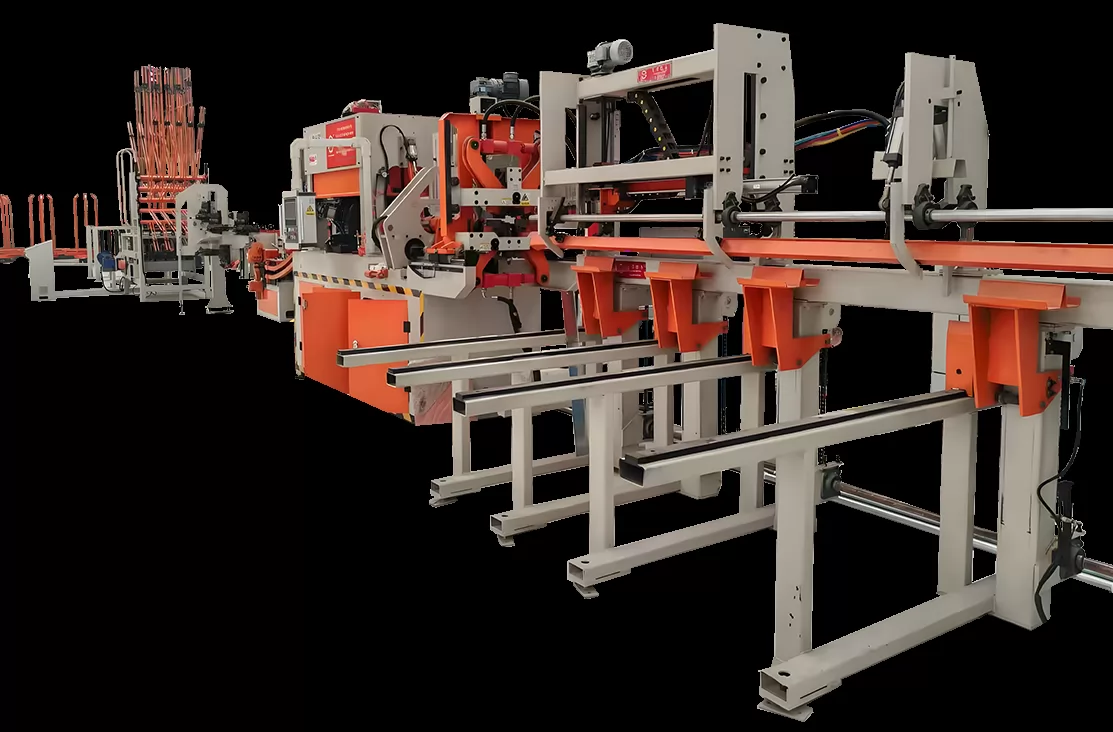

Due to the fact that the production of lattice girder is quite different from the general rebar processing, it requires that the wire feeding, straightening, bending, welding, collecting, and stacking be completed in one go. Traditional manual work no longer meets the demand, so the use of smart equipment has become the mainstream. The smart lattice girder production line only requires two people to operate, and all the above procedures can be automatically completed. It has been widely used in China's high-speed railways and civil buildings. The line adopts Innovance electrical control system, which ensures rapid and stable production and meets the precision requirements. The numerical control collection mechanism automatically collects and conveys the products, reducing labor and improving efficiency. Reliable accessories are adopted for other components to guarantee its long service life and stable performance.

Smart Truss

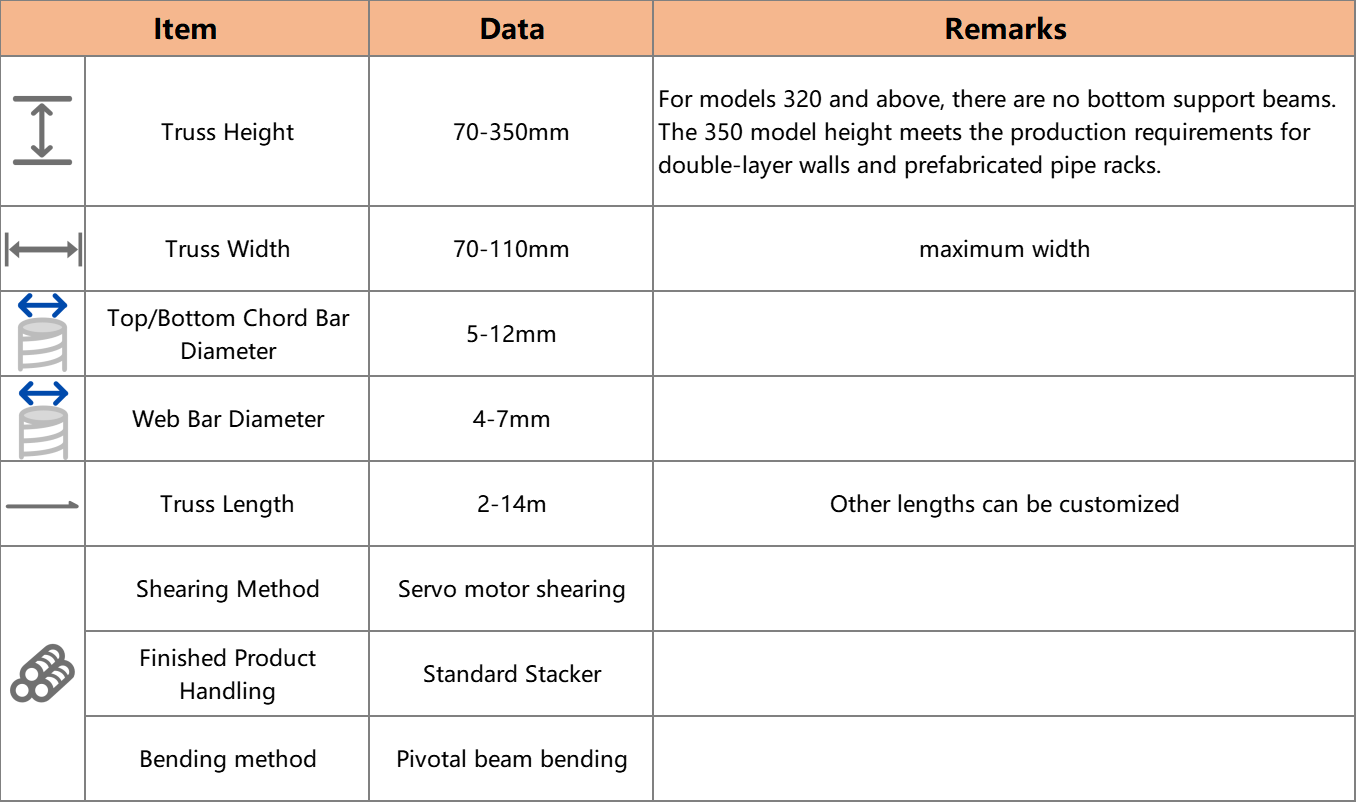

SPECIFICATION

Item Data Note
Girder Height 70-350mm No foot when higher than 320mm, still qualified for double-layer wall and prefabricated pipe corridor when higher than 350mm
Girder Width 70-110mm Max. width
Upper/Lower bar diameter 5-12mm
Side bar diameter 4-7mm
Girder Length 2〜14m customizable
Production Speed ≦17m/min Based on the specification of girder
Shearing Method Movable shearing Any size, no subject to multiple of 100

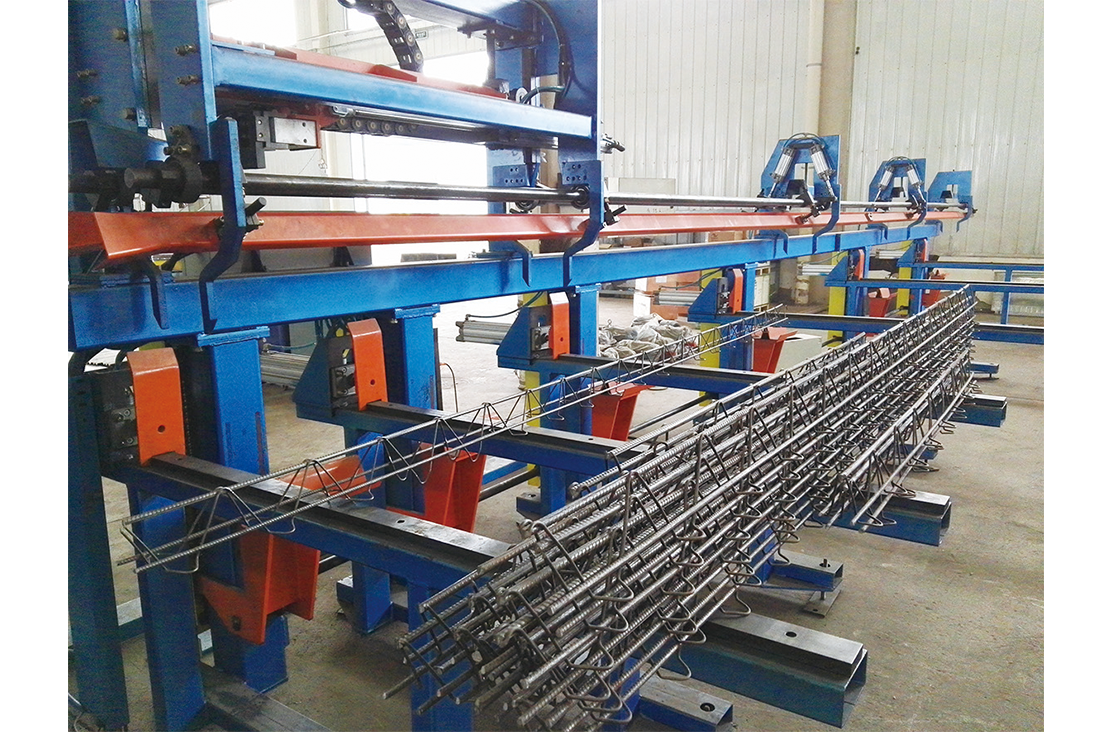

Collecting Method Stacker Multi-layer Automatic Stacker
Traction Method Hydraulic clamp traction Durable, automatic traction length adjustment
