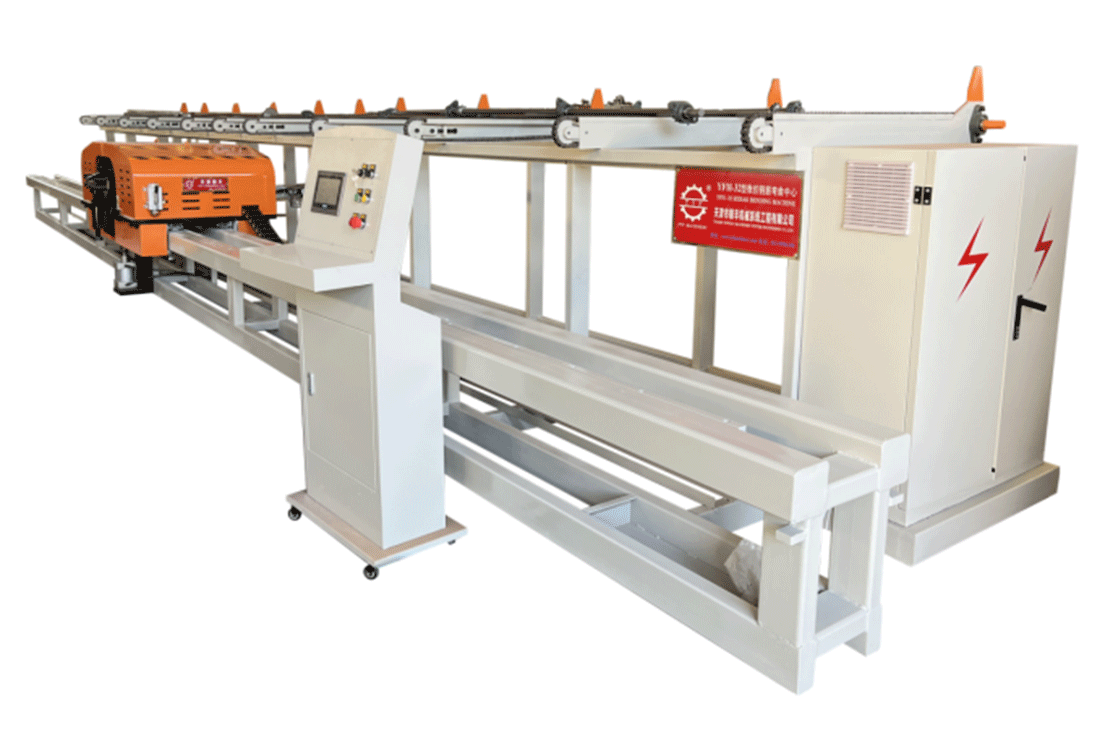

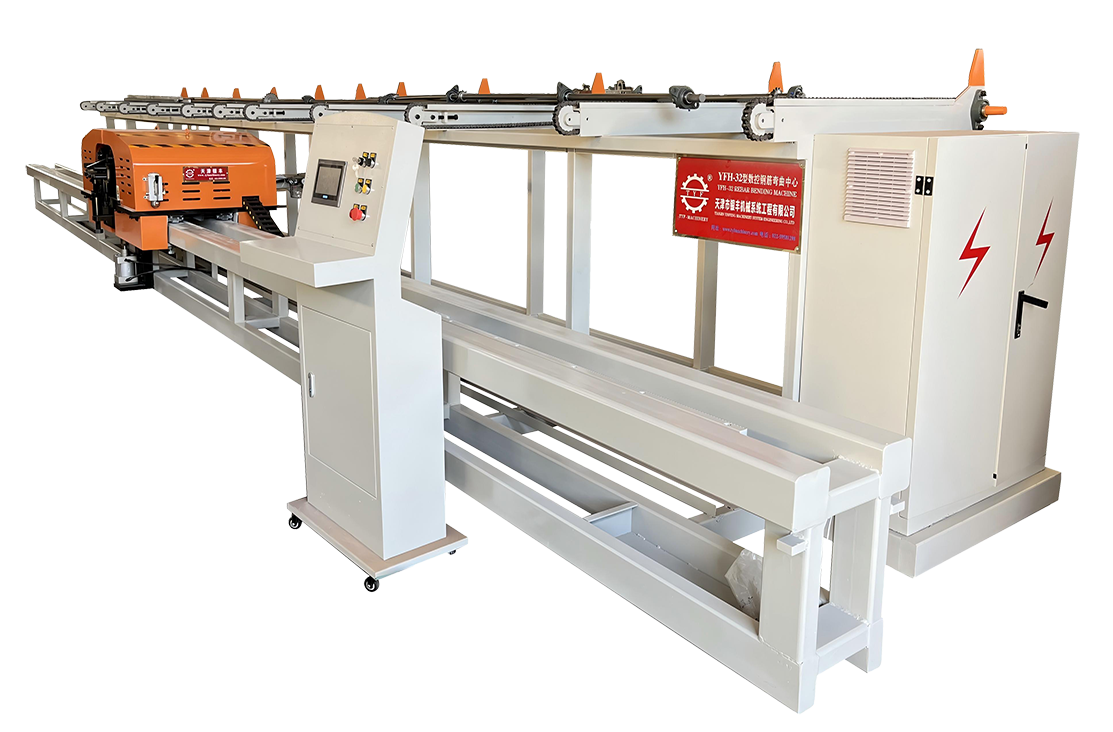

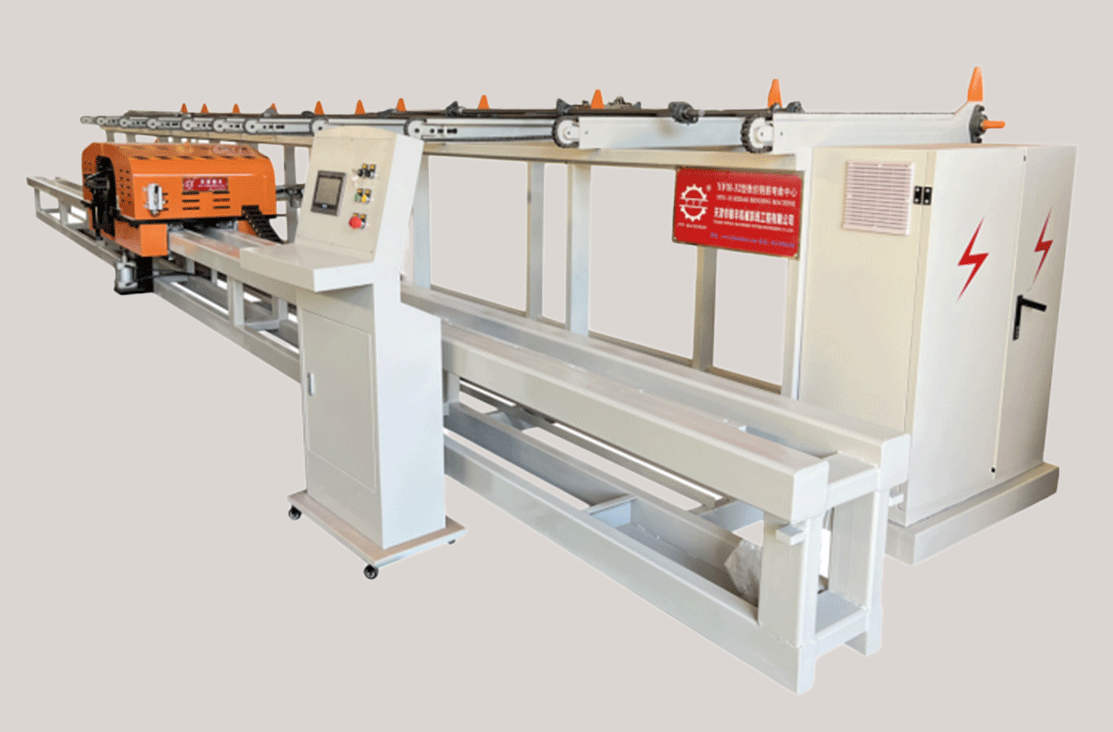

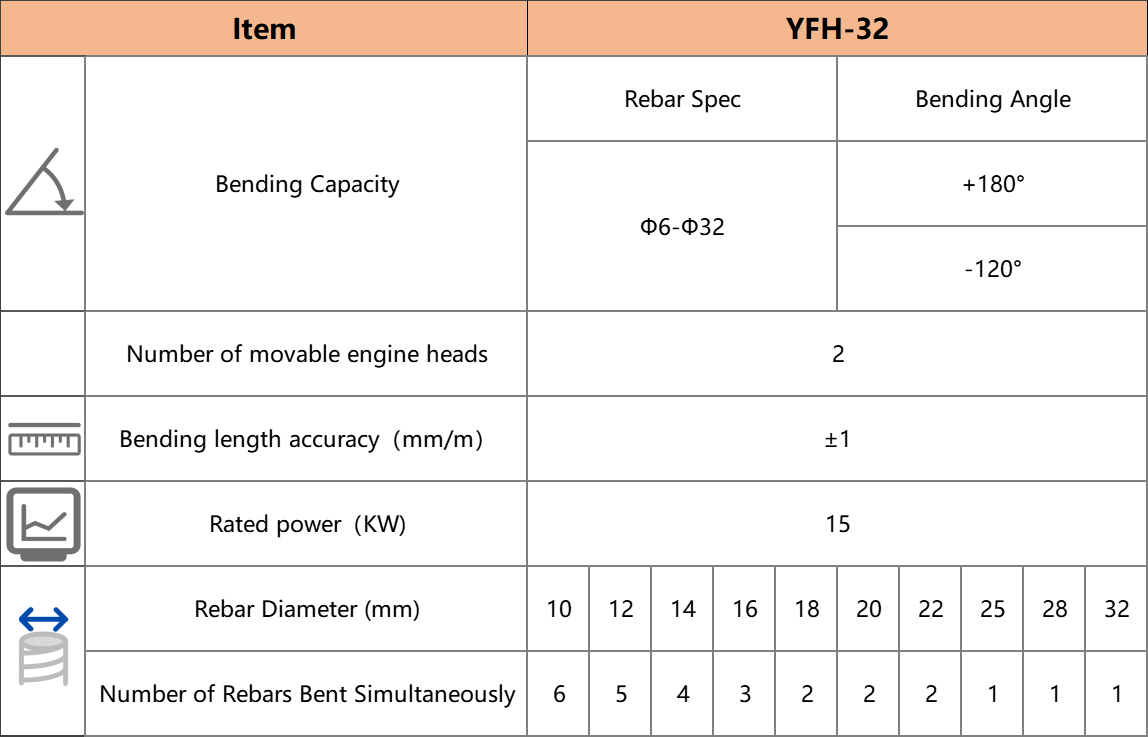

YFH-32 Vertical CNC Rebar Bending Center

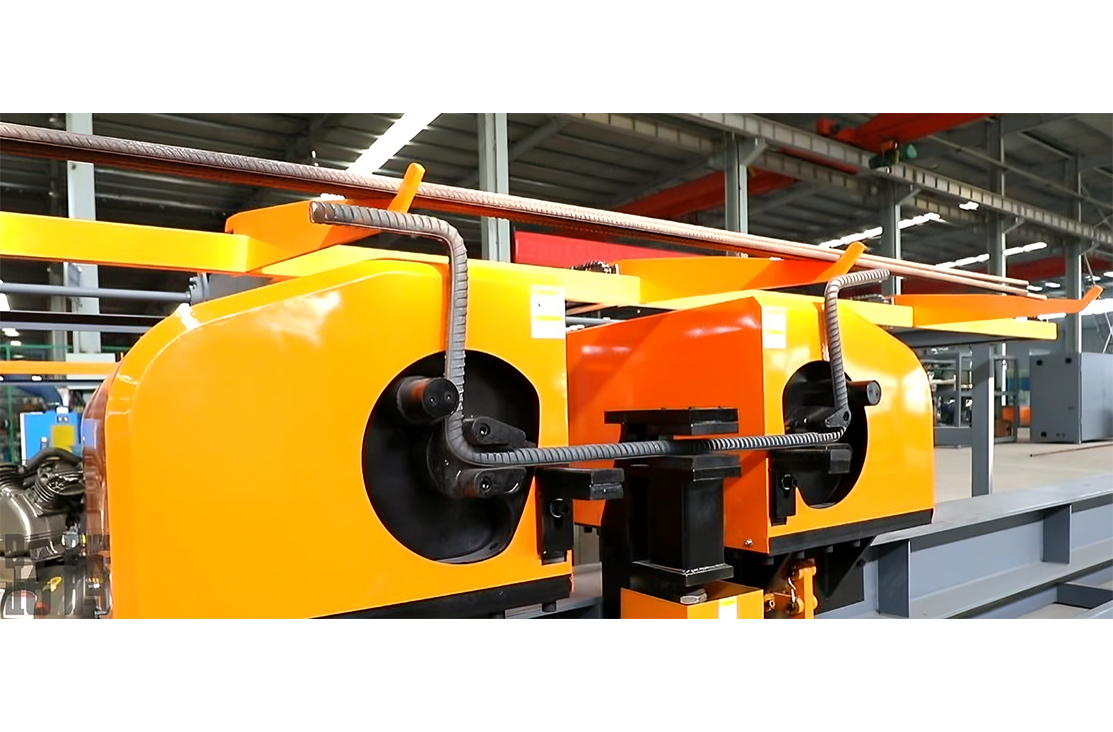

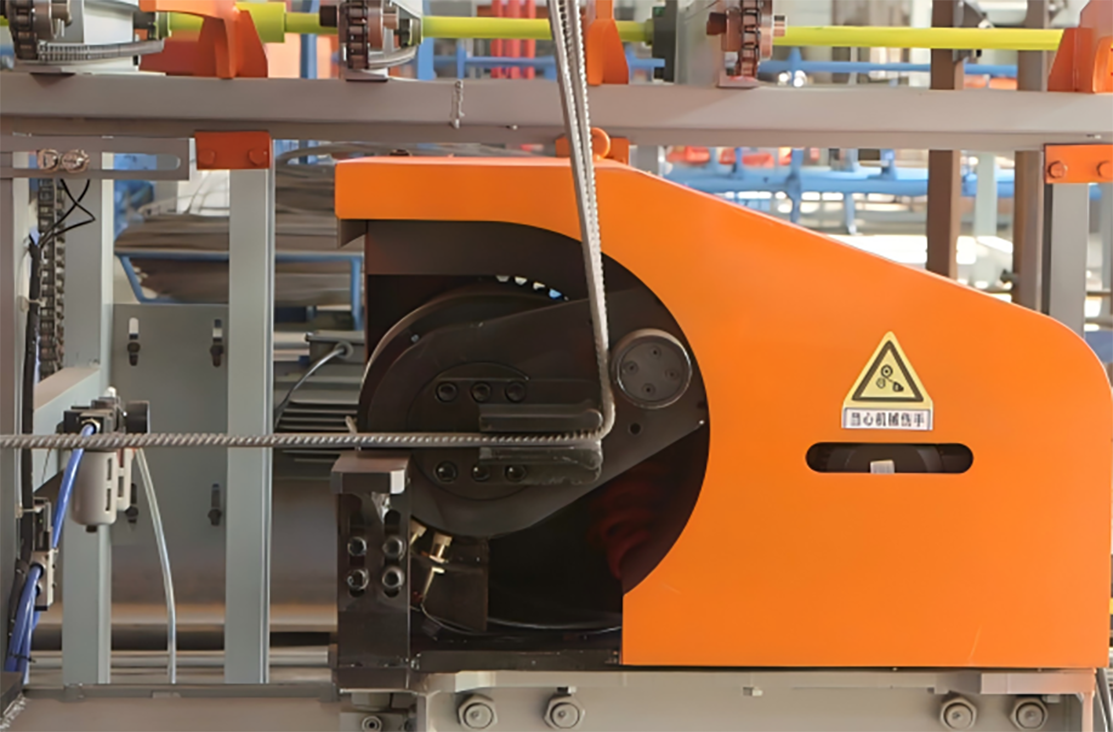

The double-head CNC steel bar processing center is a specialized equipment for steel bar bending. This equipment features simple operation, convenient maintenance, and economic practicality. It is particularly suitable for use in various project sections, centralized steel bar processing factories, and other scenarios where large quantities of steel bars need to be processed. Bending head device: The bending head has a compact structure and a wide range of steel bar processing capabilities. The movement of the bending head is driven by a servo motor, and the length of the steel bar bending is digitally controlled. The bending head moves quickly in response and has high positioning accuracy. The bending head is equipped with a hydraulic clamping mechanism, which provides strong clamping force and high positioning accuracy. Different types of center pins and bending discs are configured for the bending head to process steel bars with different requirements. The bending motor adopts frequency conversion technology, ensuring accurate steel bar processing, high efficiency, and energy conservation. It can bend multiple steel bars simultaneously. Automatic measuring device: The automatic measuring device is used to determine the position of the steel bar end. It is automatically positioned by a servo motor, eliminating the need for manual measurement and fixation. It has high positioning accuracy and reliability. It is equipped with an automatic locking mechanism to ensure the positioning accuracy of the steel bar end. The swinging stopper of this device automatically avoids the steel bar to ensure the bending accuracy of the steel bar. Frame and body: The bending center adopts an integral hoisting structure, which does not require disassembly during relocation and is easy to install. It is suitable for both fixed-site production and frequent site changes. The guide rails of the bending platform are made of high-strength moving guide rails, which are durable and less prone to deformation. The high-strength automatic storage rack enables continuous production.
