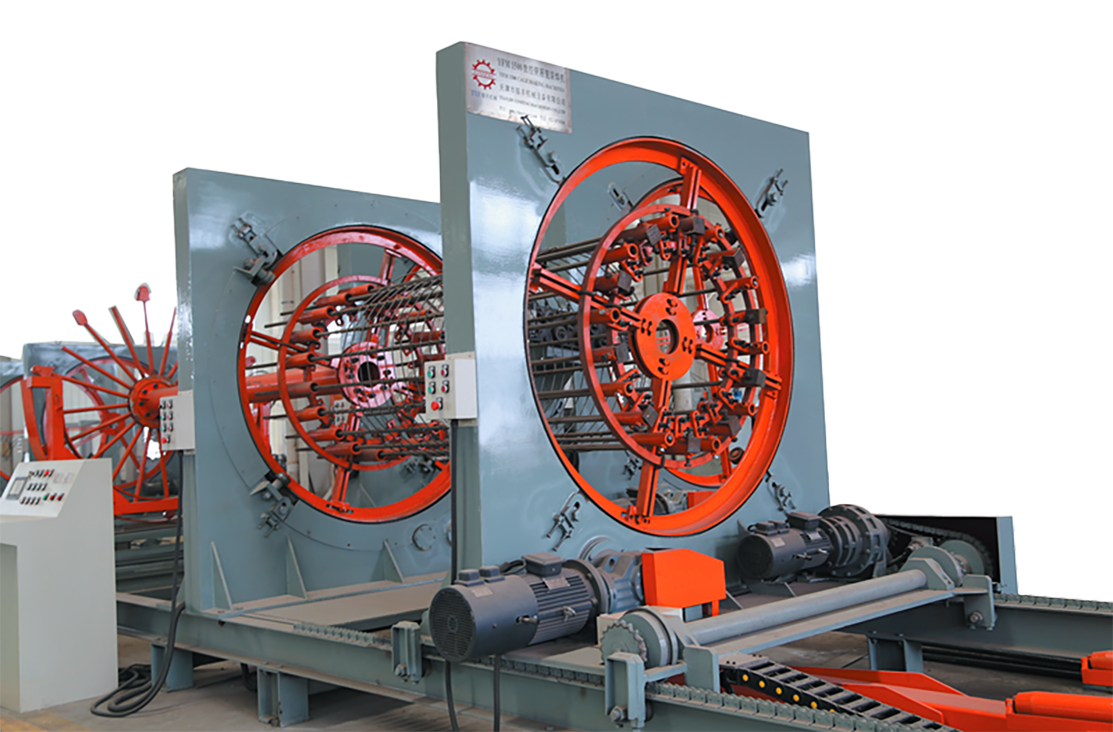

YFM2500 Intelligent Steel Cage Production Line

In various construction projects, the processing of steel bars is an important link, especially in bridge construction, where the processing of steel bar cages is a crucial part of infrastructure construction. In the past traditional construction methods, steel cages were manually rolled or welded. Besides being inefficient, the most significant drawback was the poor quality of the steel cages produced and the non-standard dimensions of the equipment, which affected the construction period and quality of the project.

Steel bar processing mainly includes steel bar shearing, straightening, strengthening cold drawing extension, bending forming, roll welding forming, steel bar connection, and welding steel bar mesh, etc. The CNC steel cage processing equipment organically combines these devices, enabling the processing of steel cages to basically achieve mechanization and automation. It reduces the process time and coordination deviations among various links, significantly improving the quality and efficiency of steel cage formation. It provides a solid technical and material foundation for the centralized production and unified distribution of steel cages. Meanwhile, the application of the new type of CNC automatic roll welding machine for steel cages will greatly reduce the labor intensity of operators and create good economic and social benefits for construction units. The application of the steel cage forming machine has opened up a new situation in the processing of steel cages and represents the future development direction of steel cage processing.
