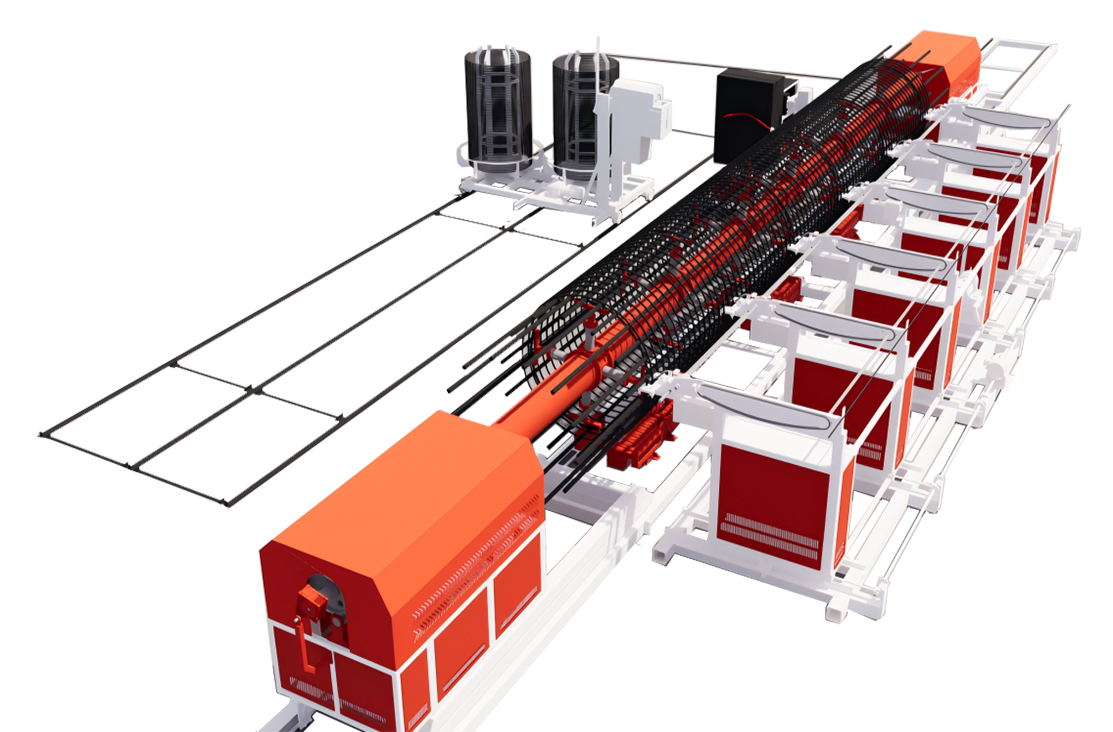

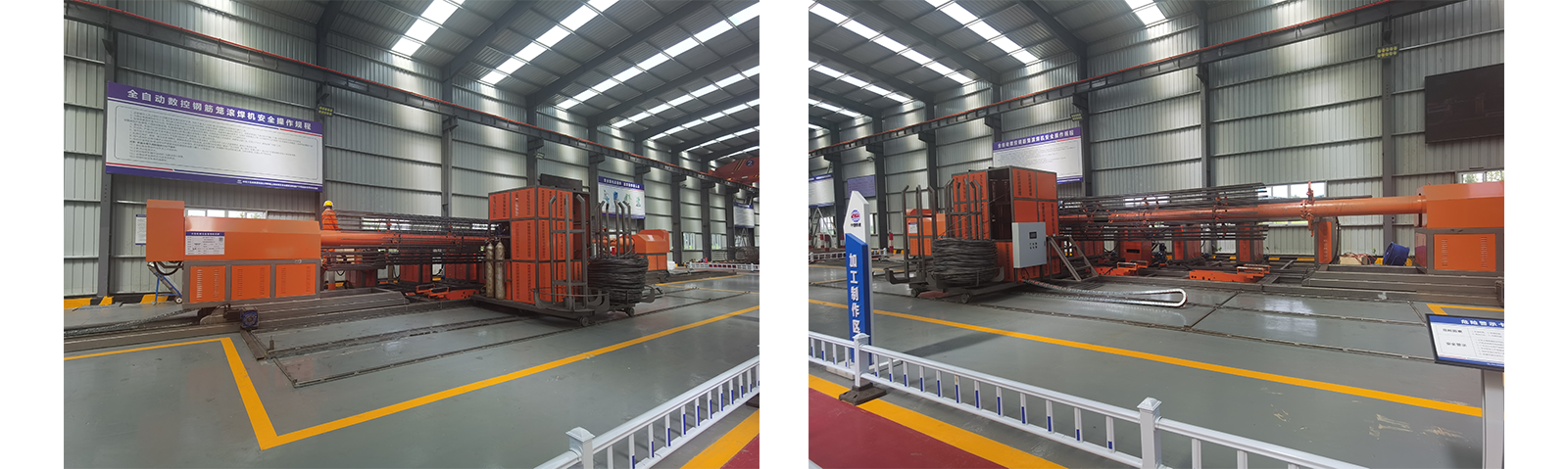

Fully automatic steel cage welding workstation

The fully automatic steel cage welding workstation is a steel cage welding equipment that does not require the old-fashioned bar threading pipes. The equipment is mainly used in subways, Bridges, building construction, airports, expressways and foundation works.

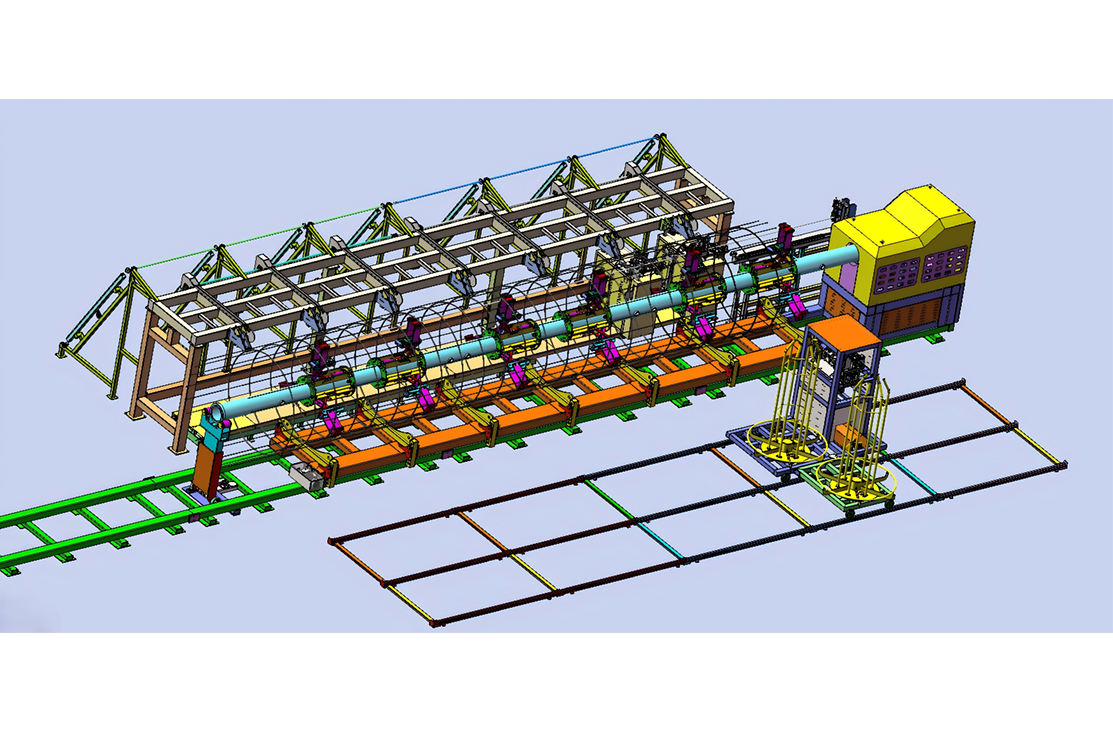

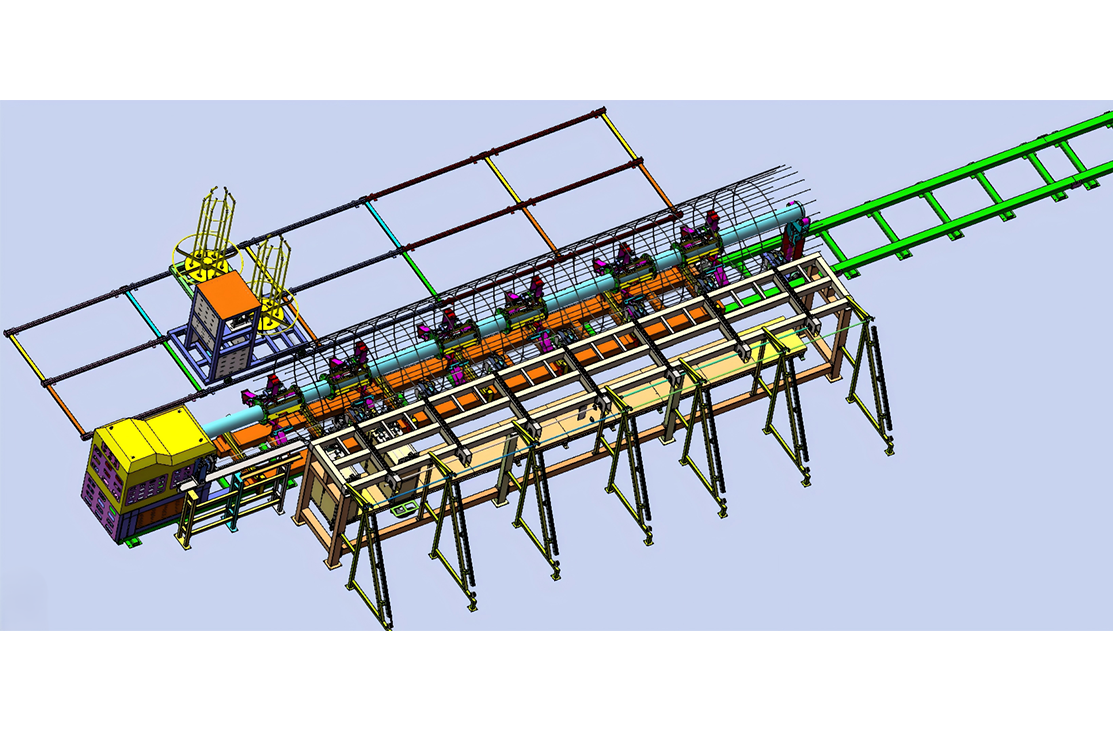

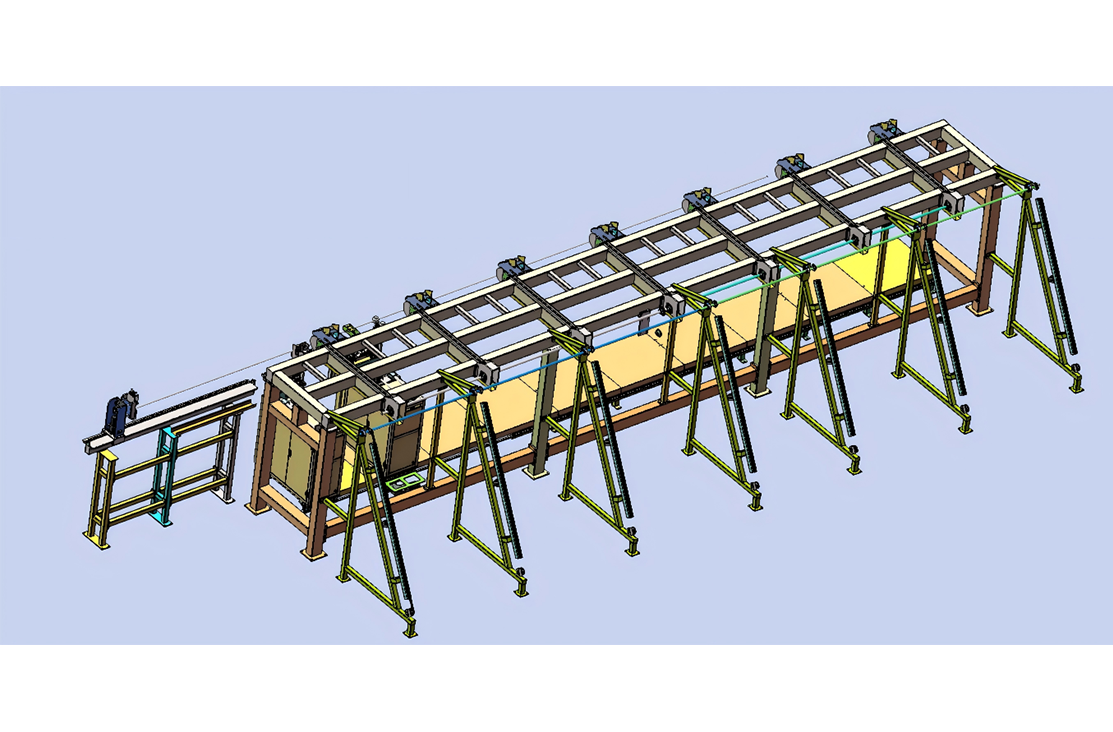

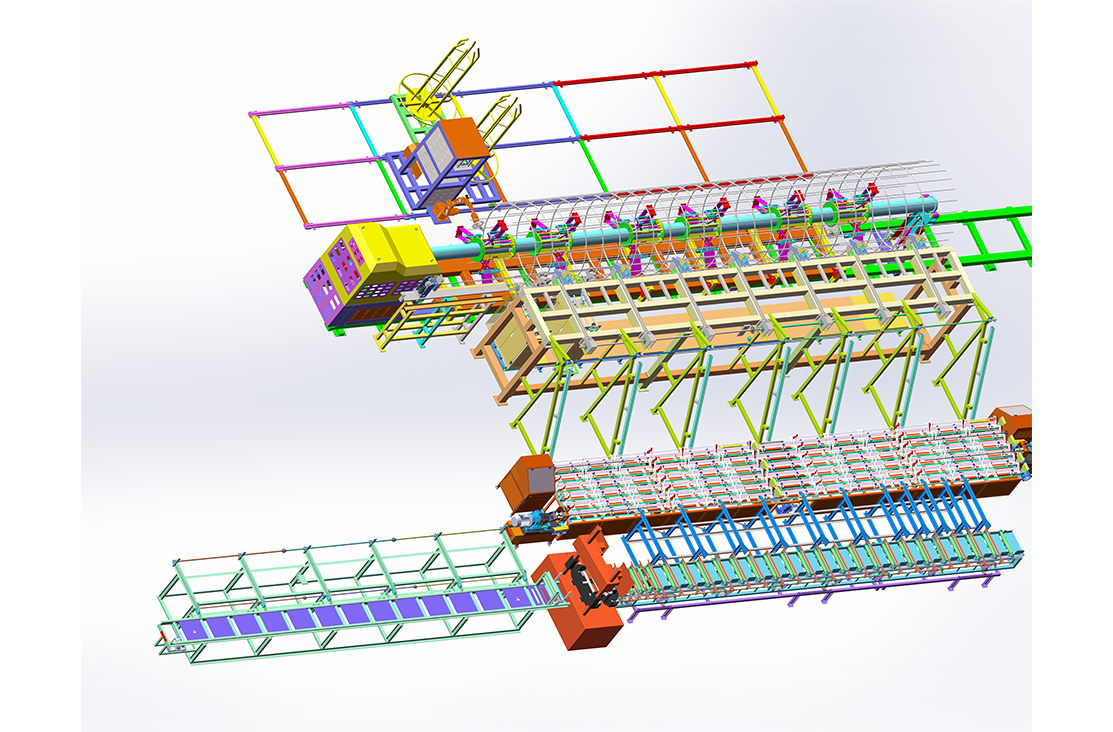

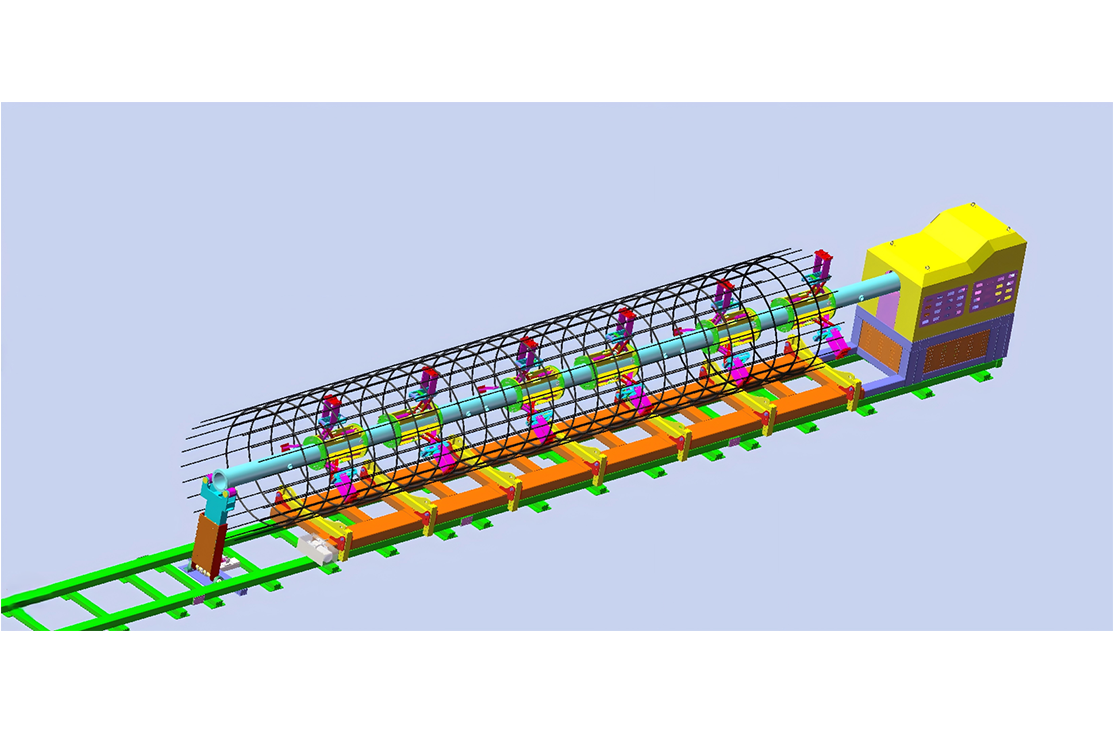

This equipment consists of an automatic main bar feeding system, a main bar detection, positioning and welding system, a bar winding and welding system, and a bar cage ejection system. No manual intervention is required during the welding process. The welding efficiency is high. The welding time of the weld points can be configured and saved according to the process, which not only saves personnel but also significantly improves the welding efficiency. It can ensure continuous and rapid welding, with good welding quality, no false welding, reliable quality, and precise control of welding time and position to save welding materials. The system supports presetting multiple sets of steel cage specification parameters. When workers process, they can directly call up the data and operate with one click on the touch screen. The assembly line-style working mode is simple and intuitive, with a high degree of automation. The product quality fully meets the requirements of the specifications. When actually producing steel cages by hand, engineering supervisors almost go to the processing site for inspection every day. However, after using the fully automatic welding workstation for steel cages, all information devices can automatically monitor and conduct real-time detection and recording of the welding process, promptly reporting various monitoring information to ensure the stability and reliability of the processing quality.
