PRODUCT PROFILE

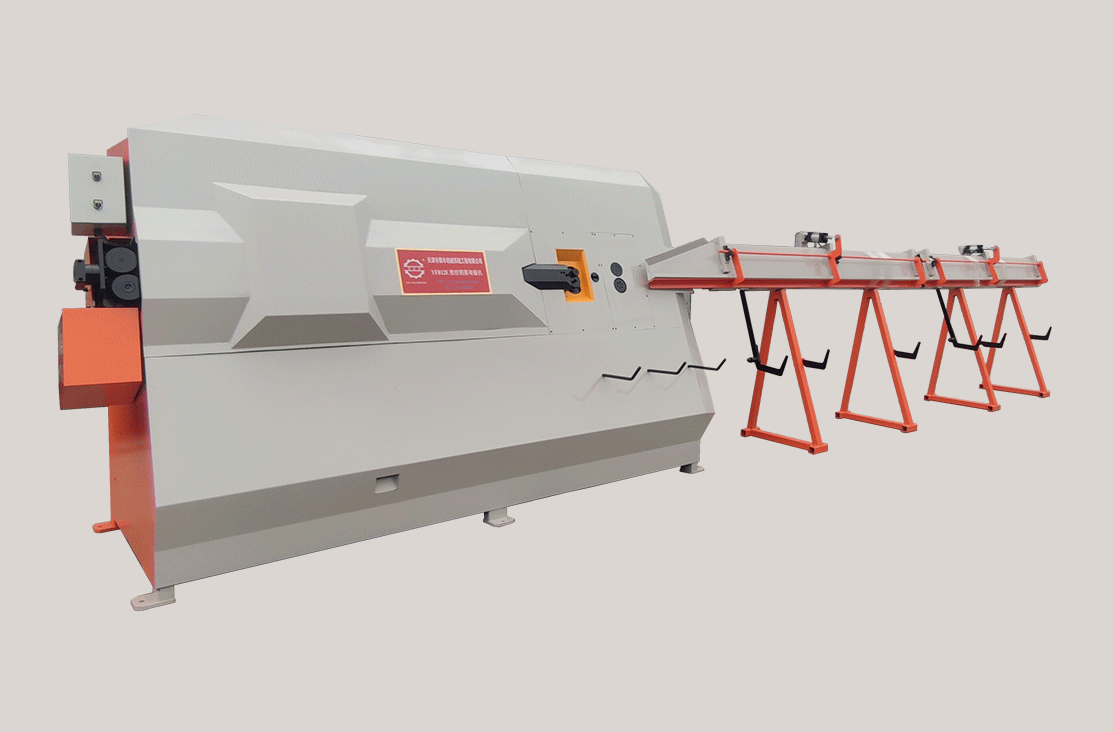

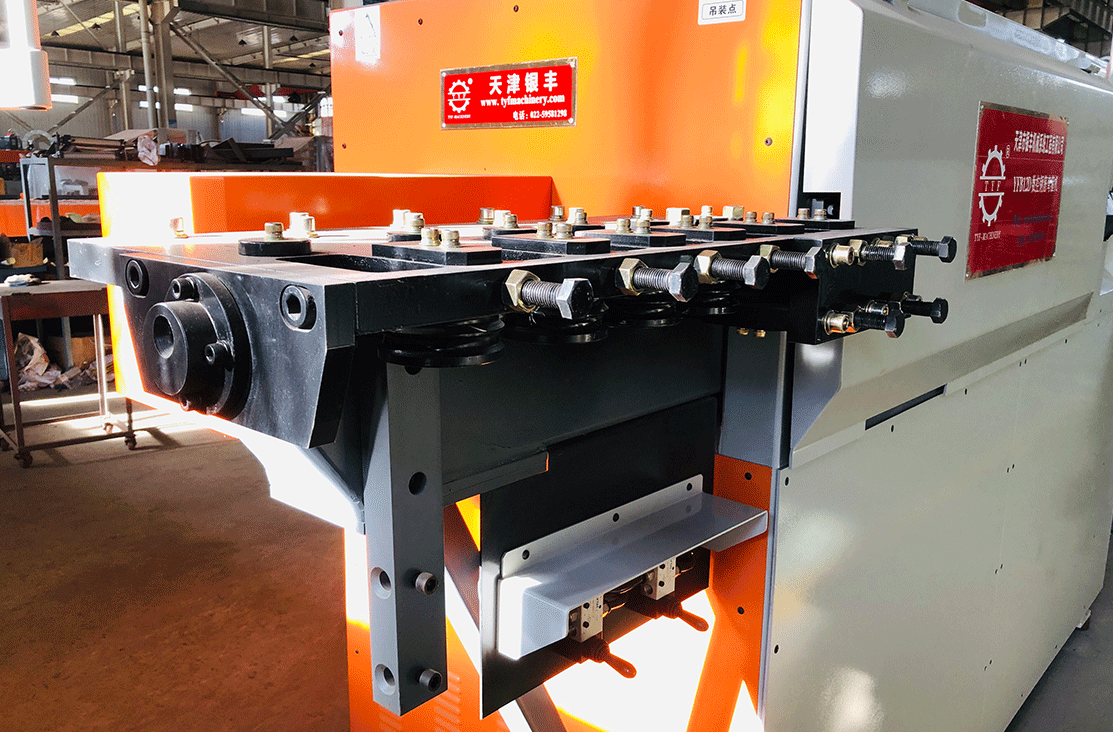

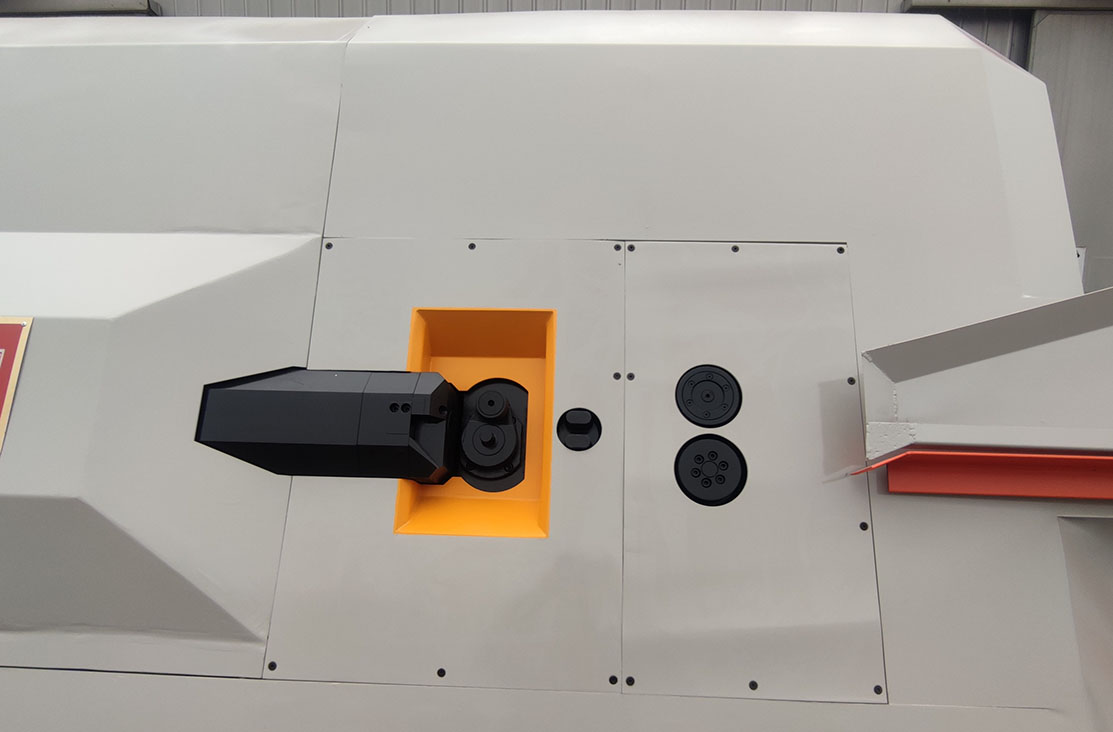

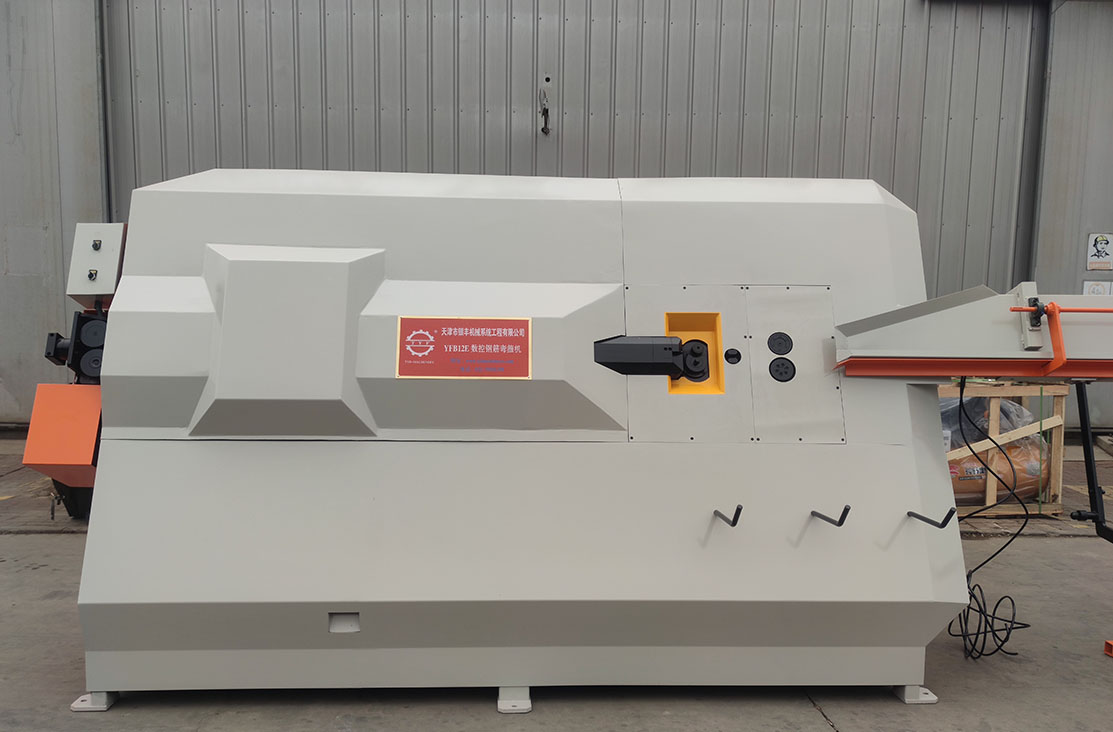

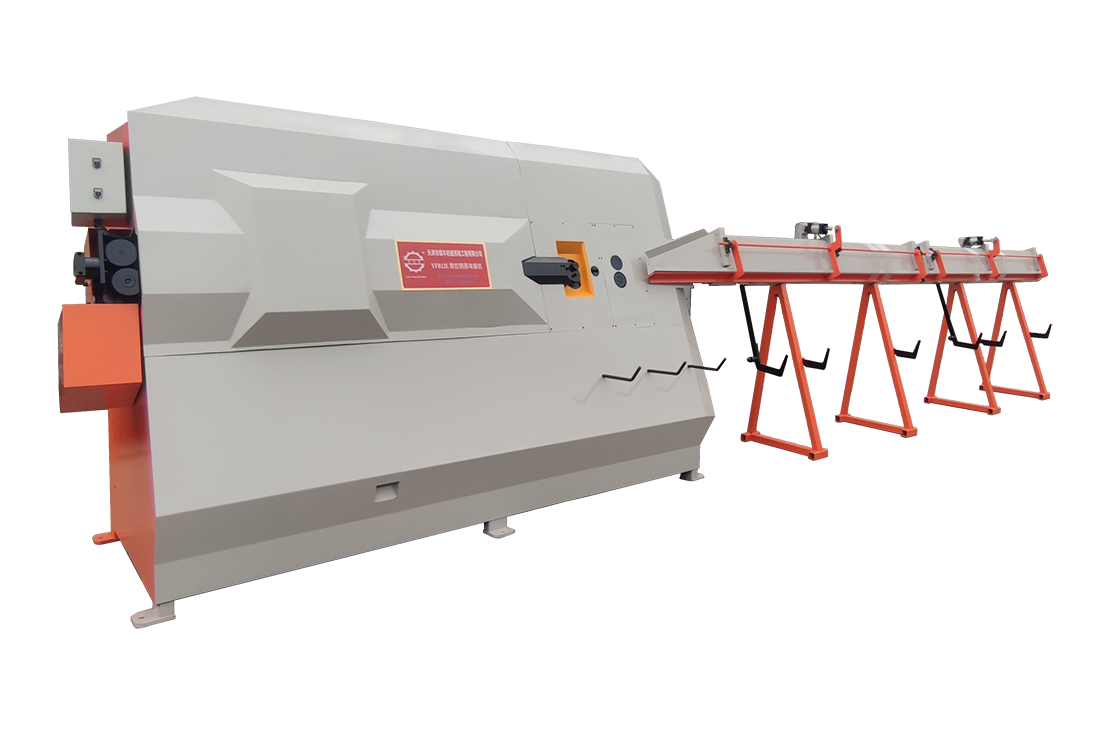

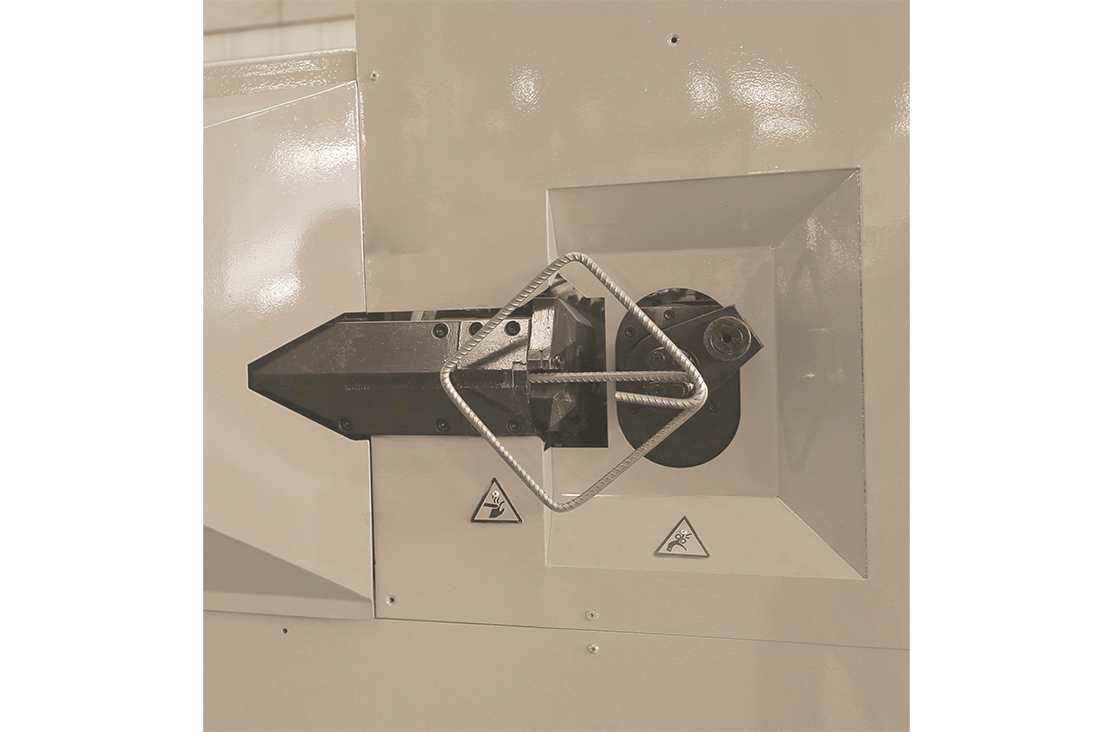

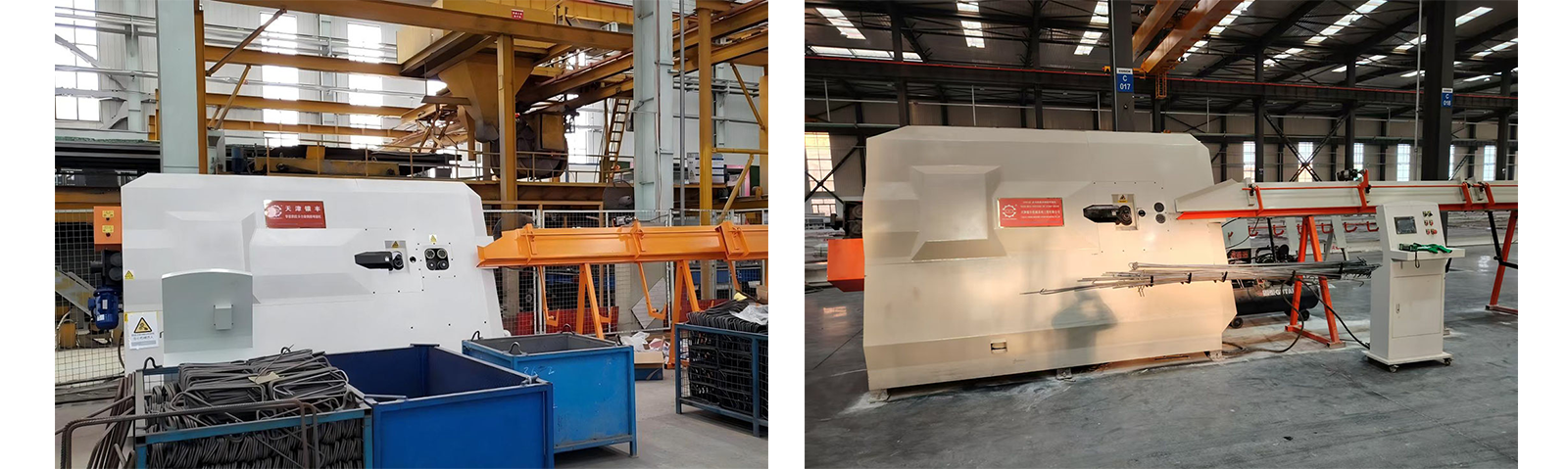

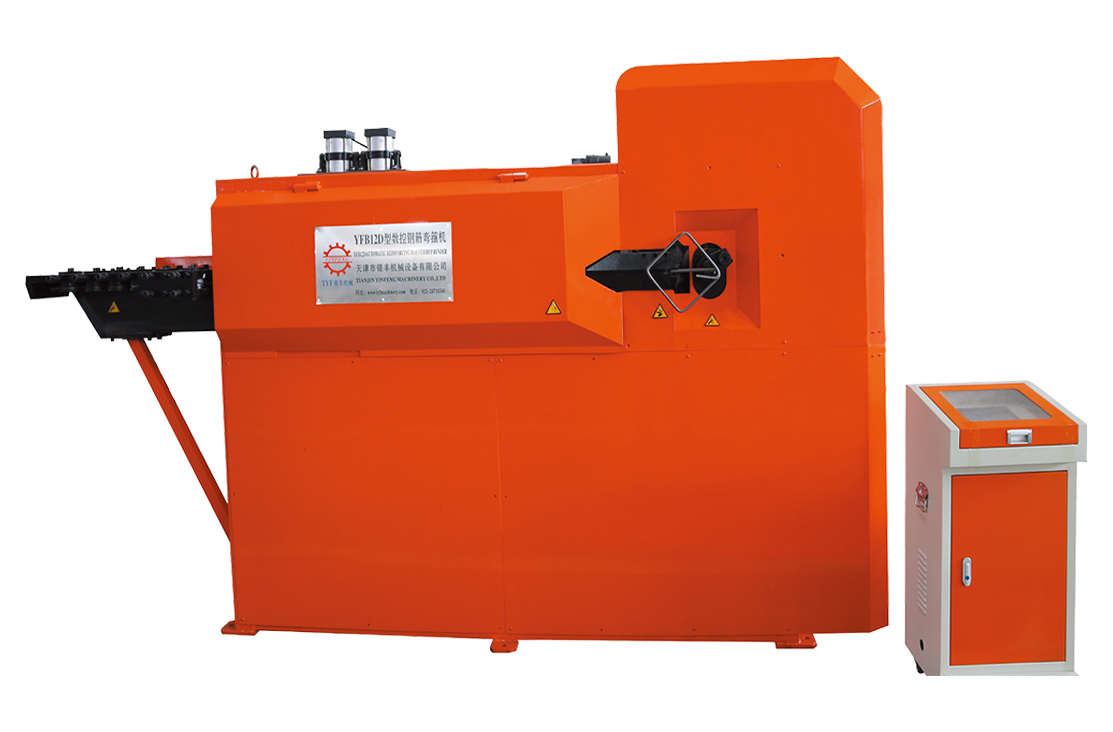

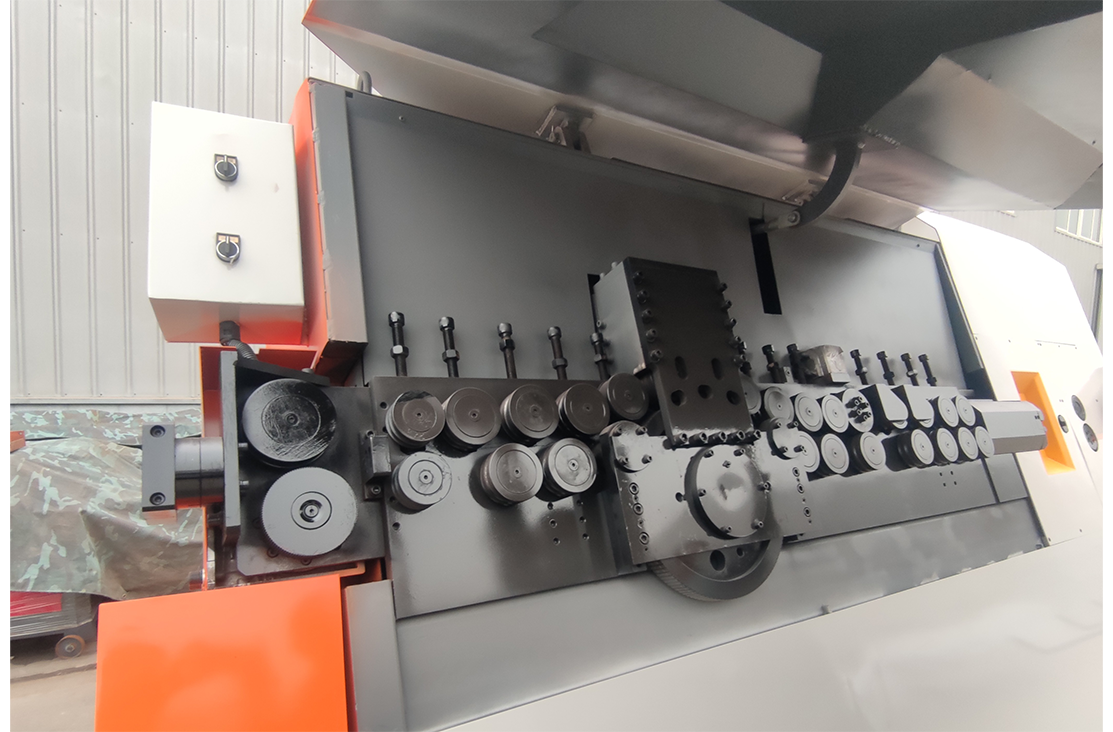

CNC Smart Stirrup Bender adopts a servo control system and integrates the straightening system, bending system and shearing system into one. It can directly process coil steel bar into stirrup, formed bar, or cut-to-size bar. Another important feature of this machine is that it can quickly switch bar diameters, avoiding the need to consider changing bars compared with the traditional mode of pre-straightening and manual bending, thus improving overall production efficiency. The numerical control and flow production mode only requires one worker to complete the production and processing of various specifications of stirrups, significantly reducing the number of workers and labor intensity, directly lowering production costs and achieving remarkable economic benefits. It is widely used in the construction industry, large steel bar processing plants and other fields.


CNC Stirrup Bender


SPECIFICATION

Item YFB12D YFB14D YFB16D
Single Bar Φ5 ‒ 13 mm Φ5 ‒ 14 mm Φ5 ‒ 16 mm
Double Bars Φ5 ‒ 10mm Φ5 ‒ 10mm Φ5 ‒ 10mm
Max. Bending Angle ±180° ±180° ±180°
Max. Bending Speed 1450 °/s 1450 °/s 1400 °/s
Max. Traction Speed 130m/min 130m/min 130m/min
Length Compensation ± 1mm ± 1mm ± 1mm
Bending Compensation ± 1 ° ± 1 ° ± 1 °
Avg. Air Pressure Consumption 600 L/min 600 L/min 600 L/min
Avg. Power Consumption 4 kWh 4.5 kWh 5.5 kWh
Total Weight 2900 kg 2960 kg 3100 kg
Bending Direction Two directions Two directions Two directions
Other Functions Power Off Memory Power Off Memory Power Off Memory
